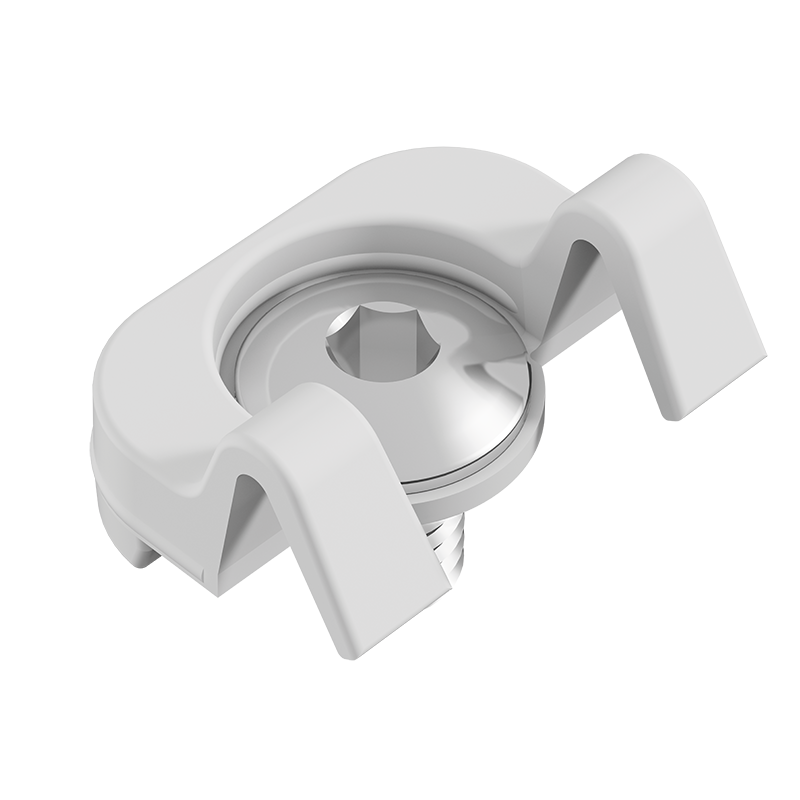

OptiLine Slim 20 Optic Holder P2F-M4 1.6 - white
货号:
31.930.E344-0
EAN:
-
产品信息 "OptiLine Slim 20 Optic Holder P2F-M4 1.6 - white"
For linear optics 31.930.E44x and 35.301.10xx

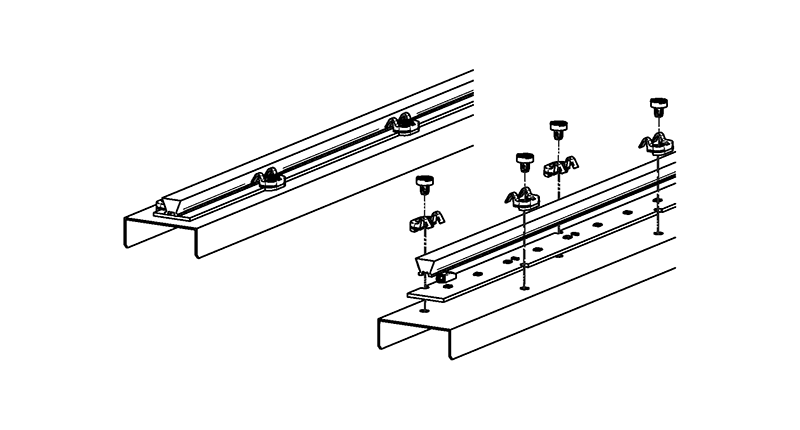

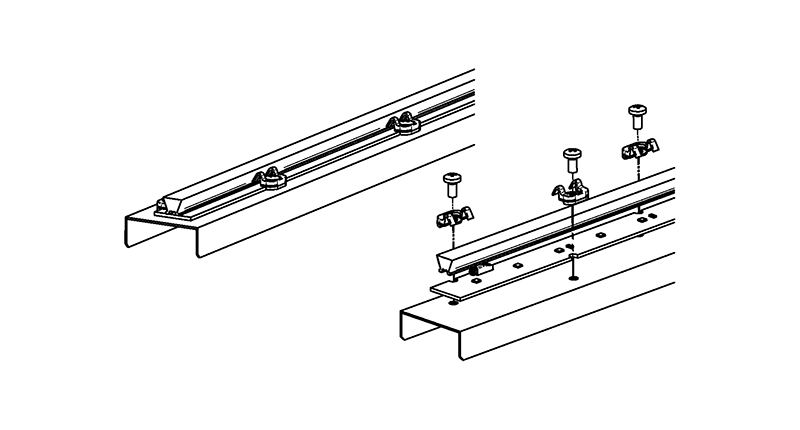

Easy and quick assembly with standardised P2F (Push to Fix) 28.901 or standard screws M4 according ISO 4762, DIN 7984 or ISO 7380
For a PCB thickness of 1.6 mm
As optic and board holder the easy, fast and secure optics mounting by clip in fixing from above
Universal application - no defined hole spacing
Integration of thr optics without disturbing the light image
Easy and quick assembly with standardised P2F (Push to Fix) 28.901 or standard screws M4 according ISO 4762, DIN 7984 or ISO 7380
For a PCB thickness of 1.6 mm
As optic and board holder the easy, fast and secure optics mounting by clip in fixing from above
Universal application - no defined hole spacing
Integration of thr optics without disturbing the light image
| Color: | white |
|---|---|
| Light Distribution: | Medium |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 700 |
| Producttype: | OptiLine Slim - 20 / 24 mm LED-System |
| Series: | OptiLine Slim - 20 / 24 mm LED-System |
| mounting method 1: | Clip-in fastening with P2F and screw fastening with M4 screws , Snap in fixing with P2F or screw fixing with standard screws M4 |
| old article number: | 31.930.-344.50 |
