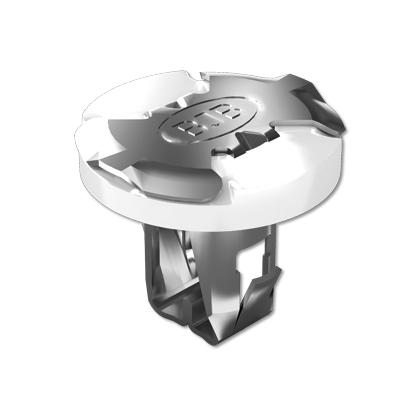

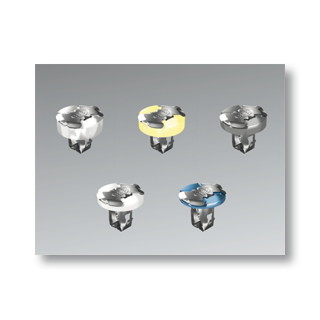

P2F (Push-to-Fix) Fixing element for LED modules
Provides consistent and constant contact pressure by elastic silicone ring
Contact pressure: min. 5 N
• Quick assembly process improves production efficiency and reduces production costs
• Eliminates potential damage from screw fixing due to low insertion forces
• CrNi and silicone materials ensure long life reliability
• Reliable heat dissipation due to a constant pressure

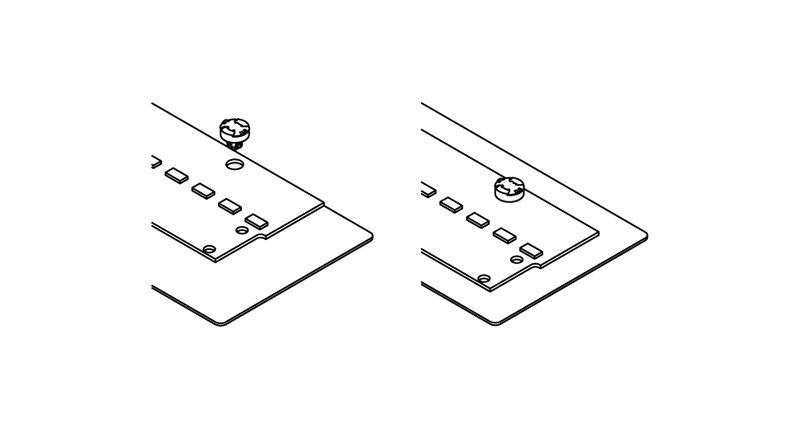

• Suitable for Zhaga standardised hole sizes of ø 4.7 mm in LED modules to ensure future proofed designs
• Assembly without any additional tools
• Solutions for Automation upon request
• Removable connection
Color: | white |
---|---|
Country of origin: | DE |
Material: | CrNi with silicone ring |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |

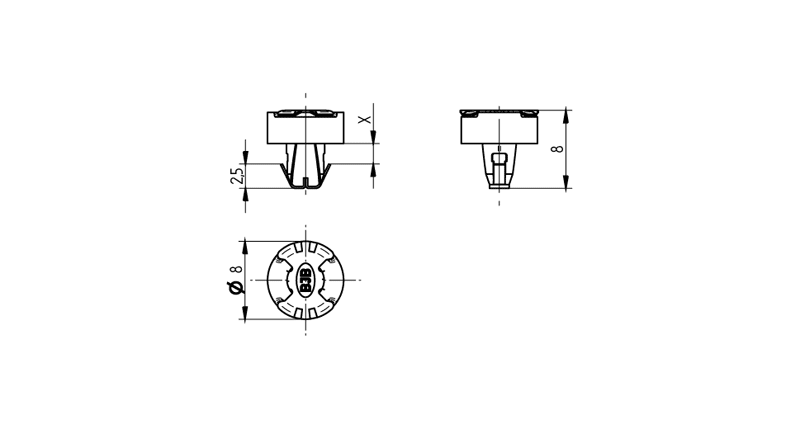

Package thickness (X): | 2.7 - 3.2 mm |
Packaging quantity: | 5000 |
Producttype: | P2F Silicone Fixing Elements for PCBs |
Series: | P2F Silicone Fixing Elements for PCBs |
Suitable for: | for PCBs, LED modules |
Type of packaging: | Bag |
Weight: | 0,25 g |

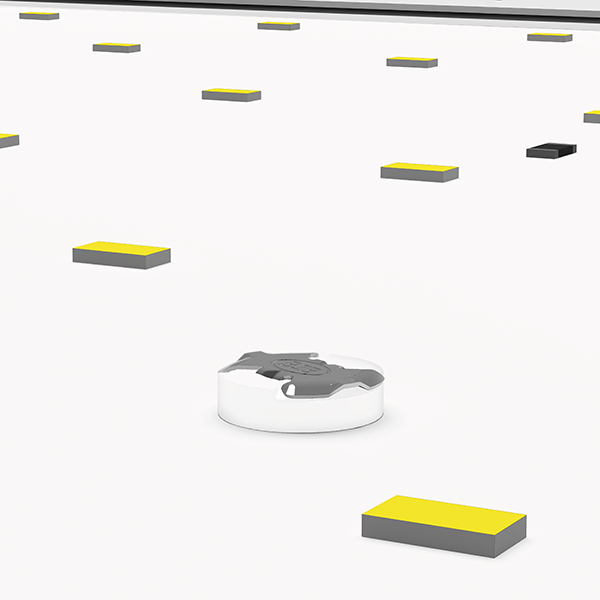

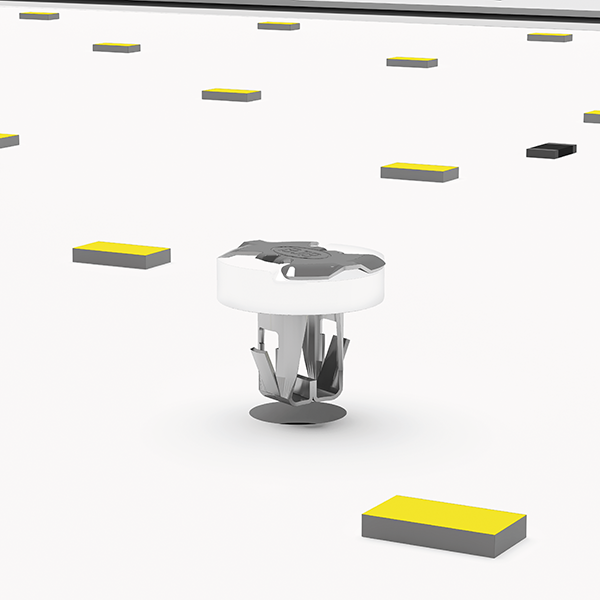

mounting method 1: | Push in fixing: for hole pattern ø 4.2 mm |
old article number: | 28.901.U165.10 |
