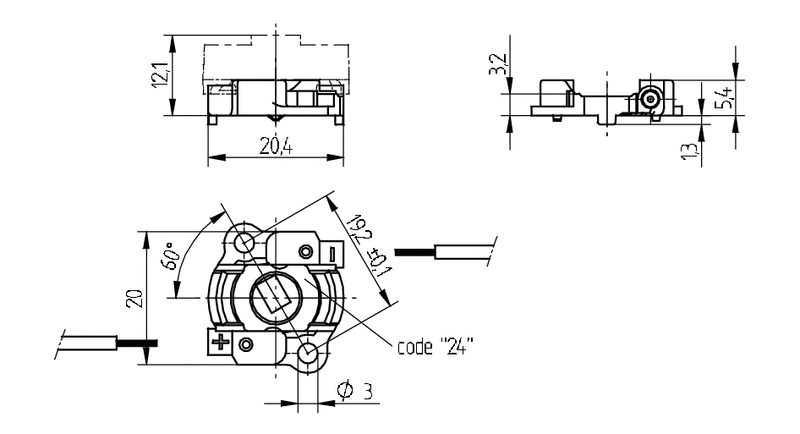

STARboard Connector for LUXEON Rebel LED
货号:
47.313.2401-0
EAN:
-
-
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-
产品信息 "STARboard Connector for LUXEON Rebel LED"
For use with holder for optical systems 47.313.E3xx
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Test ports
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg - no. D060
*Please note the max torque of the COB manufacturer
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Test ports
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg - no. D060
*Please note the max torque of the COB manufacturer
| Certification Mark: | VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1 |
|---|---|
| Color: | black |
| Conductor cross-section: | 0.5 mm² |
| Country of origin: | DE |
| LED?: | intended for the use of COBs |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110°C |
| Packaging quantity: | 250 |
| Pre-centering for COB: | No |
| Producttype: | Connectors for Starboards and Accessories |
| Series: | Starboard Connectors - 47.313 |
| Suitable for: | With centering for LED LUXEON Rebel from Lumileds |
| Type of packaging: | Tray |
| UL: | yes |
| Weight: | 1 g |
| cURus file no.: | E-345385 |
| mounting method 1: | Screw mount |
| old article number: | 47.313.2401.80 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 47.313.2401-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-2760852 | ||
| 47.313.2401-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-5665445 | ||
| 47.313.2401-0 | cURus_(USA_and_Canada)--3437952 |
适配以下LED类型
| LED厂商 | LED名称 | 更多信息 |
|---|---|---|
| LUMILEDS | Luxeon Rebel | www.lumileds.com |
-
-
-
