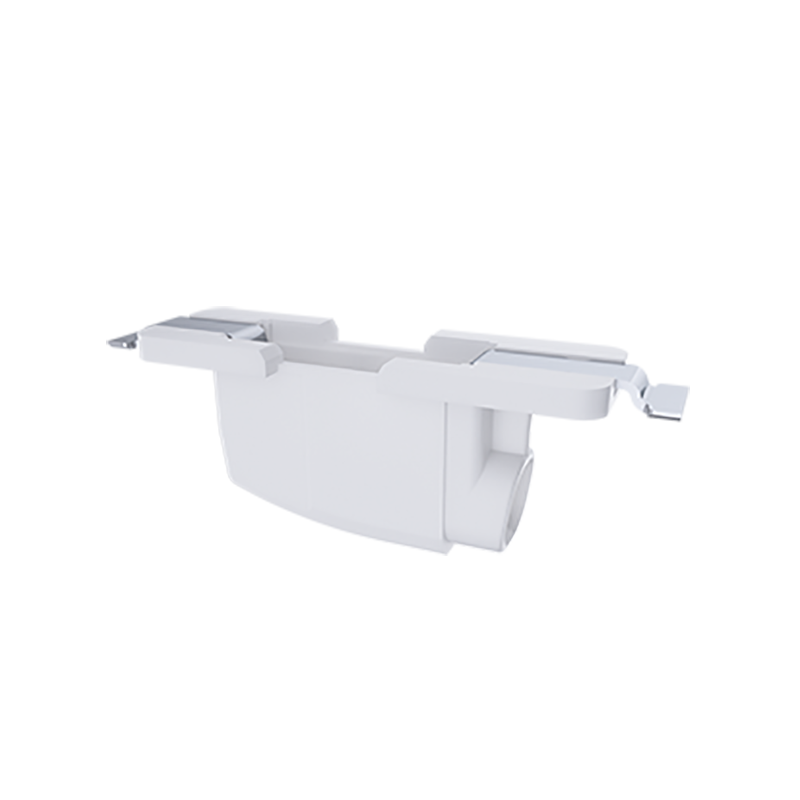

SMD Terminal Block PushThrough L - 1 pole
-
0.20-0.50 mm²AWG 24-20
-
0,20-0,75 mm²AWG 24 -18
-
-
-
-
8+1 mm
Direct insertion of solid and stranded, tinned wire ends
Wires can be released by twisting and pulling the wire simultaneously.

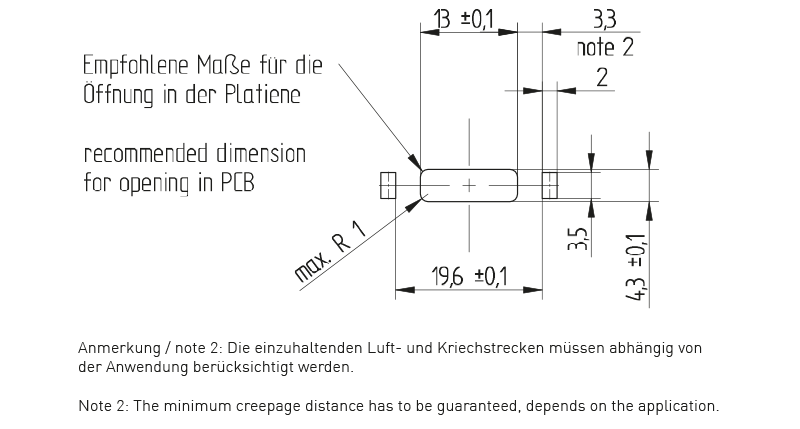

Mounting and wiring position: PCB bottom side
Ballast and PCB terminal block on one level

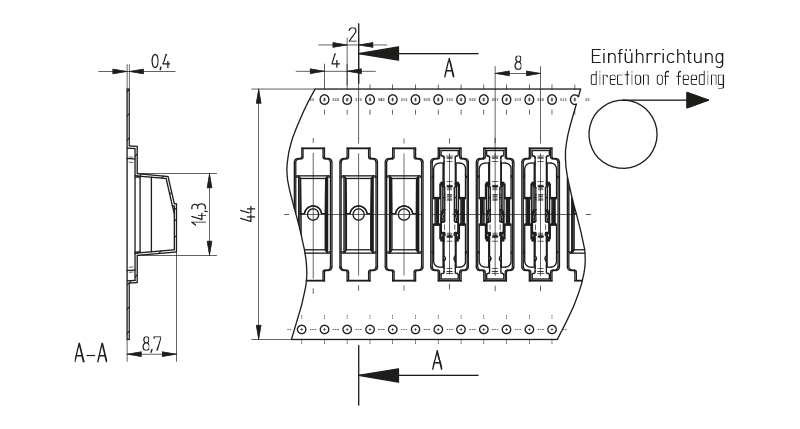

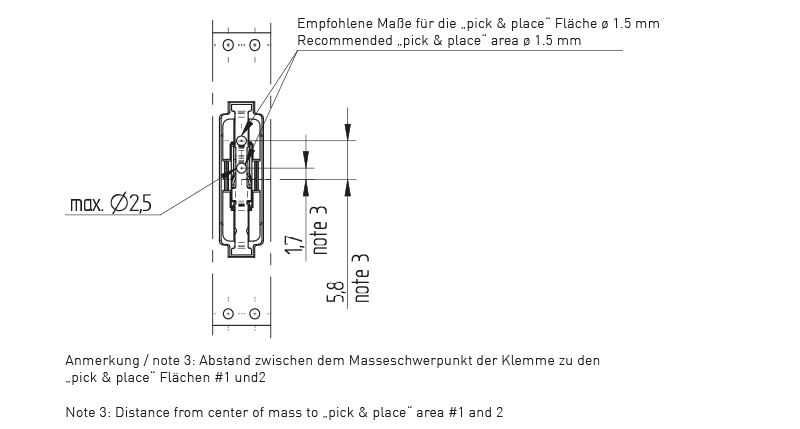

Machine-compatible "tape-and-reel" packaging
Fixing: Lead-free reflow soldering according to DIN EN 610760-1, section 6
It is recommended to make an electrical connection between both poles of each polarity on the solder mask
For further technical data, please refer to the technical data sheet under menu item downloads.
Instructions for soldering process
Suitable for leadfree-reflow-profiles according to DIN EN 61760-1 respective DIN EN 60068-2-58 up to peak-temperature of max. 260°C. Due to different application-specific parameters (component arrangement and alignment, soldering system, solder paste), it is recommended to use test runs to determine a suitable profile under production conditions.
Depending on the SMD soldering process and associated parameters a minor discoloration might occur. However, this will not influence the functionality.
| Color: | white |
|---|---|
| Conductor cross-section: | Eindrähtige Leiter / Solid wires: 0.2 - 0.75 mm², AWG 24-18; Feindrähtige, verzinnte Leiter / Stranded, tinned wires: 0.2 - 0.5 mm², AWG 24-20 |
| Connector: | push wire contact |

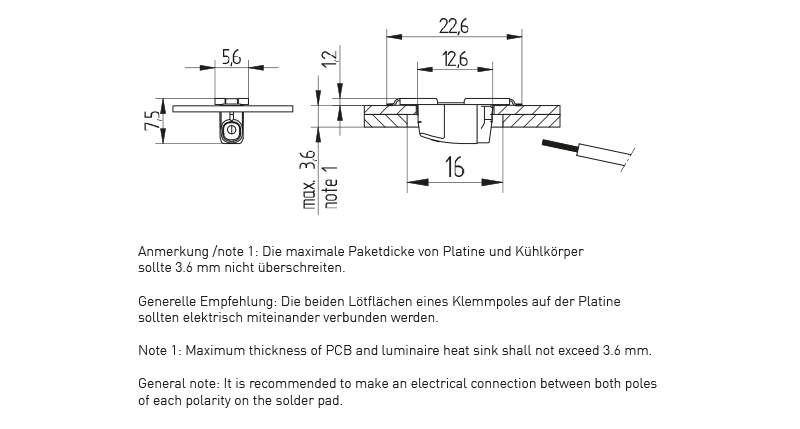

| Height: | 7,4 mm / 0.295 inch |
| Height (build in): | 7.5 mm |
| Length: | 22.6 mm / 0.889 inch |
| Material: | Housing: PPA, white; Contact material: CuNi; Contact surface: hot-dip tinned |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 1 |
| Packaging quantity: | 11200 |
| Producttype: | PushThrough SMD Terminal Blocks |
| Series: | SMD Terminal Blocks for rear side wiring |
| Temperature rating: | Ambient temperature from -40°C to 125°C |
| Weight: | 0,5 g |
| Width: | 5.6 mm / 0.220 inch |
| Wiring: | PCB bottom side |
| mounting method 1: | Solder fixing |
| old article number: | 46.151.1001.50 |
| ENEC Rating: | 9A / 500V (EN 60947-7-4) - 0.2-0.75mm²9A / 500V (EN 60598-1) - 0.2-0.75 mm² , pitch min. 6.50mm |
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 46.151.1001-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)4268179 | ||
| 46.151.1001-0 | ENEC_Zeichen-ENEC_Approval4628953 |
-
