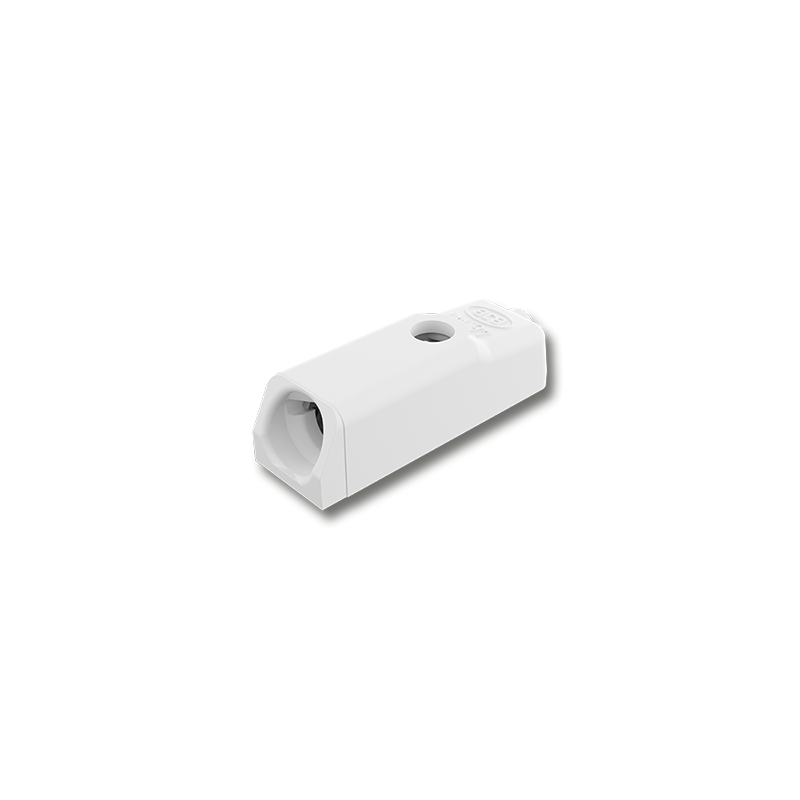

SMD Terminal Block Nano - 1 pole
-
0,20-0,50 mm²AWG 24 -20
-
-
-
-
7 ± 0.5 mm
Direct insertion of solid wires
Contact opening funticon - for release of already inserted wires
Mounting and wiring position: PCB top side

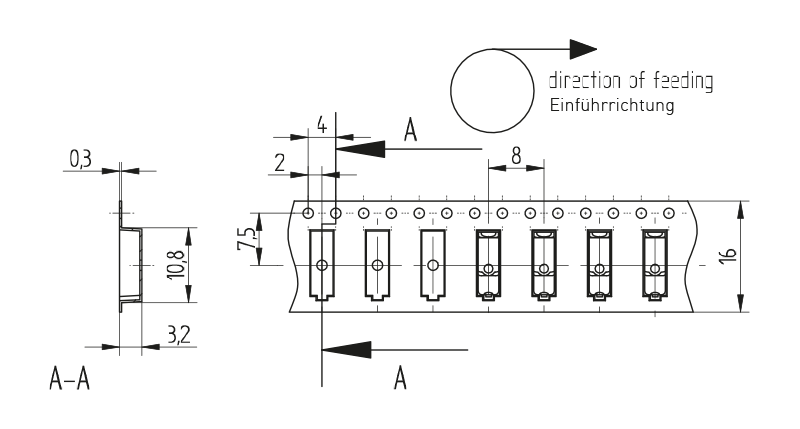

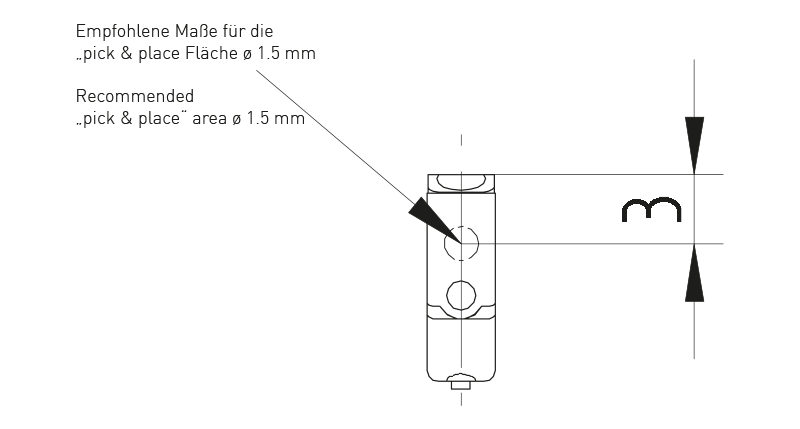

Machine-compatible "tape-and-reel" packaging
Fixing: Lead-free reflow soldering according to DIN EN 610760-1, section 6

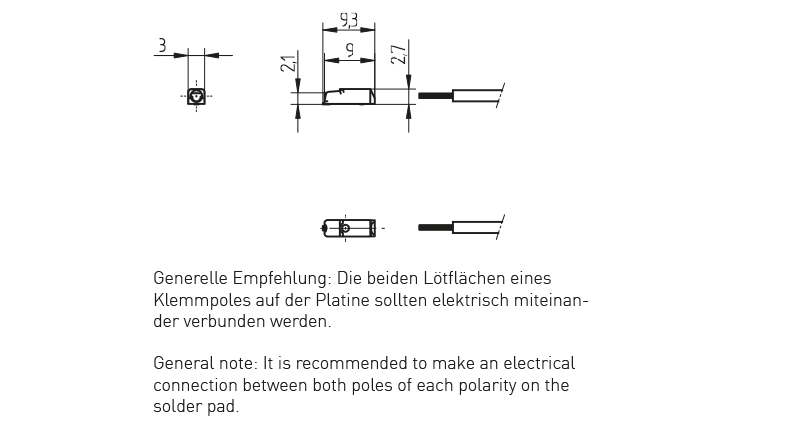

It is recommended to make an electrical connection between both poles of each polarity on the solder mask
To operate the contact opening function, we recommend the use of our tool 46.141.U801
For further technical data, please refer to the technical data sheet under menu item downloads.
Instructions for soldering process
Suitable for leadfree-reflow-profiles according to DIN EN 61760-1 respective DIN EN 60068-2-58 up to peak-temperature of max. 260°C. Due to different application-specific parameters (component arrangement and alignment, soldering system, solder paste), it is recommended to use test runs to determine a suitable profile under production conditions. Depending on the SMD soldering process and associated parameters a minor discoloration might occur. However, this will not influence the functionality.
| Color: | white |
|---|---|
| Conductor cross-section: | 0,20 - 0,50 mm² AWG 24-20 |
| Connector: | push wire contact |
| Country of origin: | DE |
| Height: | 2,7 mm |
| Height (build in): | 2.7 mm |
| Material: | Housing: PPA, whiteContact material: CuNiContact surface: hot-dip tinned |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 1 |
| Packaging quantity: | 72900 |
| Producttype: | Nano SMD Terminal Blocks |
| Series: | Nano SMD Terminal Blocks |
| Temperature rating: | Ambient temperature from -40°C to 125°C |
| Type of packaging: | Blister belt |
| UL: | yes |
| Weight: | 0,095 g |
| Wiring: | PCB top side |
| mounting method 1: | Solder fixing |
| old article number: | 46.141.2001.50 |
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 46.141.2001-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)4268179 | ||
| 46.141.2001-0 | ENEC_Zeichen-ENEC_Approval4628953 |
-
