Sealing cap ZB 18 for receptacle
货号:
47.121.E303-0
EAN:
-
-
-40°C to +100°C
-
Zhaga Book 18
产品信息 "Sealing cap ZB 18 for receptacle"
Sealing cap for receptacle 47.121.U301
| Ausführung: | according to Zhaga Book 18 |
|---|---|
| BJB Data Share: | https://share.bjb.com/index.php/s/RAZaDAfsiKXPcjg |
| Color: | black |

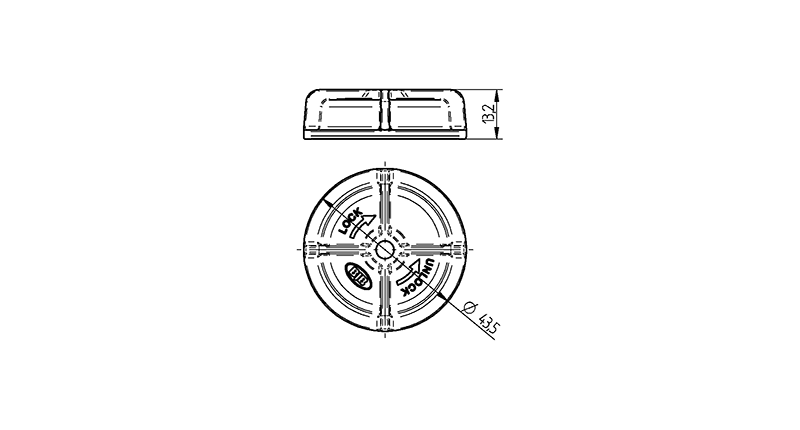

| Diameter: | 43.5 mm |
| Height: | 13,5 mm |
| IK impact strength grade: | IK09 |
| Material: | PBT |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | -40°C up to +100°C |
| Packaging quantity: | 200 |
| Producttype: | Receptacle - the basis for outdoor light sensors |
| Protection type: | IP 66 |
| Series: | Receptacle - the basis for outdoor light sensors |
| Utilityfilm Link: | https://www.youtube.com/watch?v=5gH1PGNZ0LI |
| mounting method 1: | Screw cap with twist lock |
| old article number: | 47.121.-303.80 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 47.121.E303-0 | Genehmigung_liegt_vor-Approval_at_hand5988380 |
Data Packages
| Type | Link |
|---|---|
| BJB Data Share | share.bjb.com |
| Utilityfilm Link | www.youtube.com |
-
-40°C to +100°C
-
Zhaga Book 18
