OptiLine Performance - Medium 2 ft
-
-
Medium
-
0,5 - 1,0 mm
产品信息 "OptiLine Performance - Medium 2 ft"

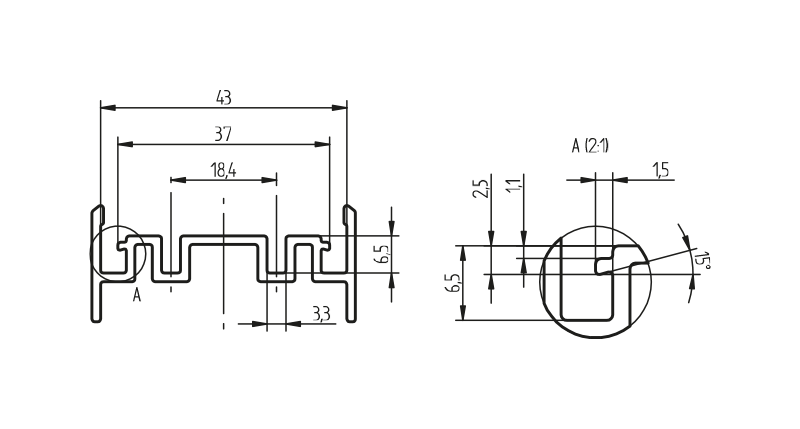

1-Click push-in fixing into luminaire metal sheet or aluminium profile for metal sheets: 0.5 - 1.0 mm
• Centering pins for mounting and optimal alignment of optics and LED module
• Centering pins also for anti-twist protection
• Spacers for correct positioning and alignment of LED module to the lens
• Key and slot system for a gapless assembly of the optics
• Only one end cap for both ends
Area of application:
For use in linear- and panel lights
Office: Work place lighting and corridor lighting
Shop: General lighting and corridor lighting
Industry: Park stores, department stores and warehouses
Public Areas: Corridors and stairways
• Improved visibility and contrast of the illuminated areas
• Good and uniform light distribution
• Reduced glare

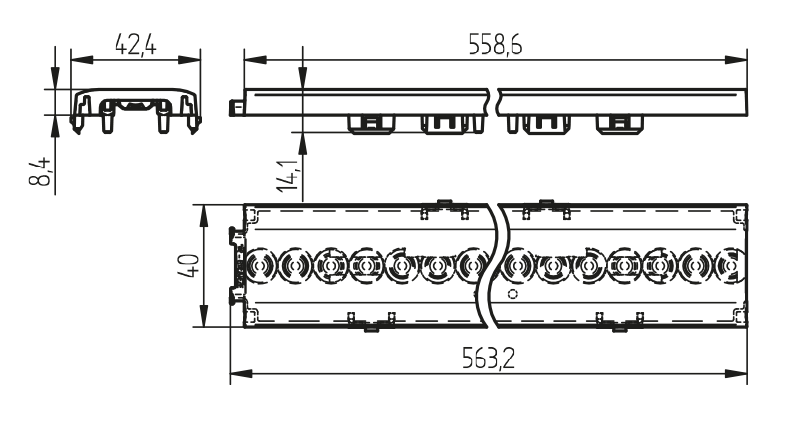

| Color: | clear |
|---|---|
| Height: | 8.4 mm |
| Length: | 563.2 mm |
| Light Distribution: | Medium |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110 °C |
| Optical efficiency: | 96.4 % (Philips Fortimo LED Strip OC) |
| Packaging quantity: | 42 |
| Pitch distance: | 11.66 mm |
| Producttype: | OptiLine Perform - single-row 1-click Optics - Pitch-dependent |
| Series: | OptiLine Perform - single-row 1-click Optics - Pitch-dependent |
| Suitable for: | Philips Fortimo LED Strip OC LED modulesfrom 280 mm (1ft) to 560 mm (2ft) or comparableLED modules |
| Surface outside: | Micro structure |
| Utilityfilm Link: | https://youtu.be/1DNfsMp1Op4 |
| Weight: | 87,1 g |
| Width: | 40 mm |

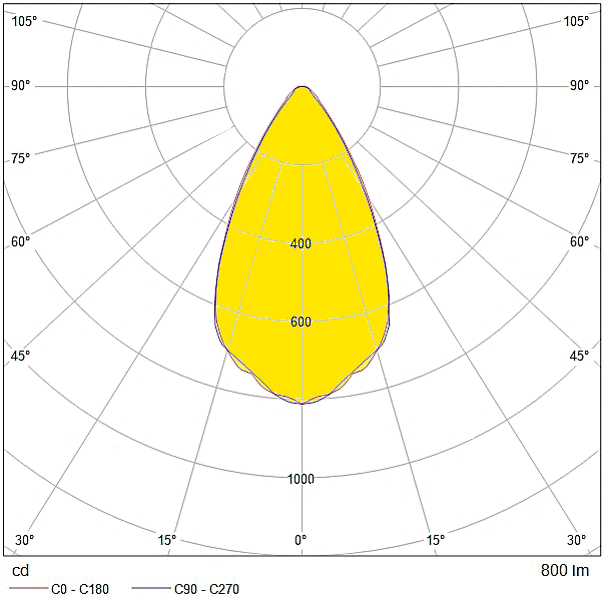

| angle of radiation: | 59° (Philips Fortimo LED Strip OC) |
| mounting method 1: | Push-in fixing into metal sheet or aluminium profile |
| old article number: | 35.348.1012.85 |
