OptiLine Performance Duallens - Wide
货号:
35.320.1001-0
EAN:
4049853000313
-
-
Wide
-
0,5 - 1,0 mm
产品信息 "OptiLine Performance Duallens - Wide"
• To increase efficiency, the lens design was designed for 2 LEDs (2835) per lens
• Low UGR due to single lens design
• Good light quality due to optimized microstructure on the surface
• Toolless assembly of optics & LED-board possible in one work step
• Flexibility due to clip fastening suitable for luminaire sheets (0.5 - 1.0 mm) and aluminium profiles
• Suitable for SELV and non SELV applications
• Only one end cap for both sides
• Low UGR due to single lens design
• Good light quality due to optimized microstructure on the surface
• Toolless assembly of optics & LED-board possible in one work step
• Flexibility due to clip fastening suitable for luminaire sheets (0.5 - 1.0 mm) and aluminium profiles
• Suitable for SELV and non SELV applications
• Only one end cap for both sides
| Application areas: | Linear- and panel lightsOffice: Work place lighting and corridor lightingShop: General lighting and corridor lightingIndustry: Park stores, department stores and warehousesPublic applications: Corridors and stairways |
|---|---|
| Ausführung: | optimized for use with terminal blocks for rear side wiring through clearances/cut-outs in the affected lenses. |
| Color: | clear |

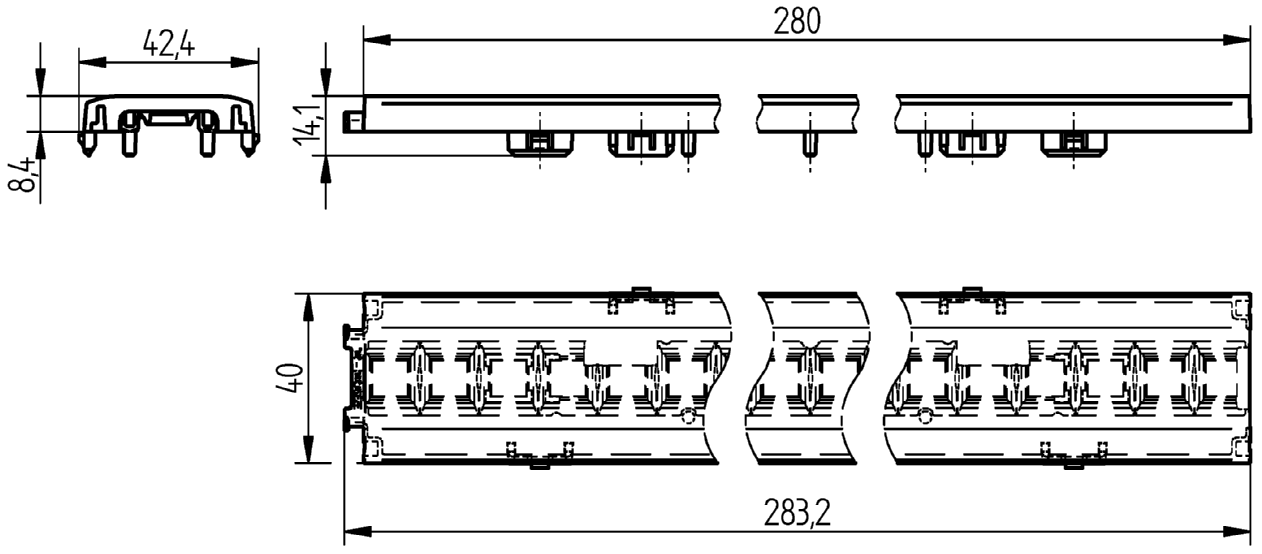

| Height: | 8,4 mm |
| IP-Protection type: | IP40 |
| Length: | 280 mm |
| Light Distribution: | wide |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110°C |
| Optical efficiency: | 93 % (Samsung LM281B+Pro) |
| Packaging quantity: | 84 |
| Pitch distance: | 14 mm |
| Producttype: | OptiLine Performance Duallens |
| Series: | OptiLine Perform - single-row 1-click Optics - Pitch-dependent |
| Suitable for: | for LED dimensions 2835, 3030 |
| Surface: | Micro structure |
| Utilityfilm Link: | https://youtu.be/1DNfsMp1Op4 |
| Weight: | 46,7 g |
| Width: | 40 mm |

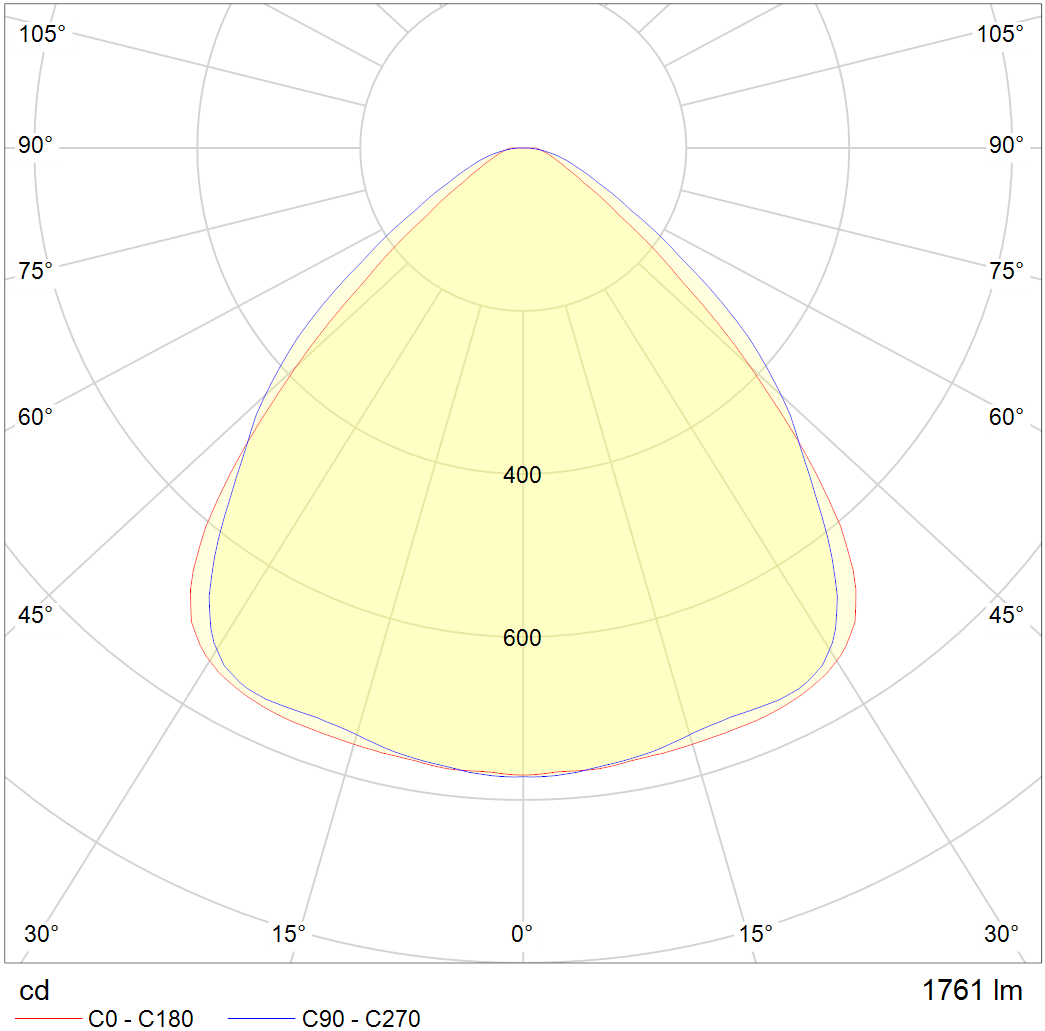

| angle of radiation: | 92° / 97° (Samsung LM281B+Pro) |
| directional characteristic: | Wide |
| mounting method 1: | Snap-in mounting |
| number of LEDs per module: | 2 LEDs per pitch |
| old article number: | 35.320.1001.85 |
