OptiLine 3x11 Low Glare - Wide
货号:
35.333.1013-0
EAN:
-
-
-
according to Zhaga Book 7
-
Flood
-
0,5 - 1,0 mm
产品信息 "OptiLine 3x11 Low Glare - Wide"
• Uniform light distribution thanks to an optimized surface microstructure that reduces glare
• Designed for 3x11 LED modules according to Zhaga Book 7
• Compatible with 280 mm (1 ft) and 560 mm (2 ft) LED modules
• Groove and spring system enables seamless and precise optic assembly
• Mounting options:
- With BJB P2F fixing element (Art. 28.905)
- Or with M4 screws (1.2 Nm)
• One end cap fits both sides for efficient installation
• Designed for 3x11 LED modules according to Zhaga Book 7
• Compatible with 280 mm (1 ft) and 560 mm (2 ft) LED modules
• Groove and spring system enables seamless and precise optic assembly
• Mounting options:
- With BJB P2F fixing element (Art. 28.905)
- Or with M4 screws (1.2 Nm)
• One end cap fits both sides for efficient installation

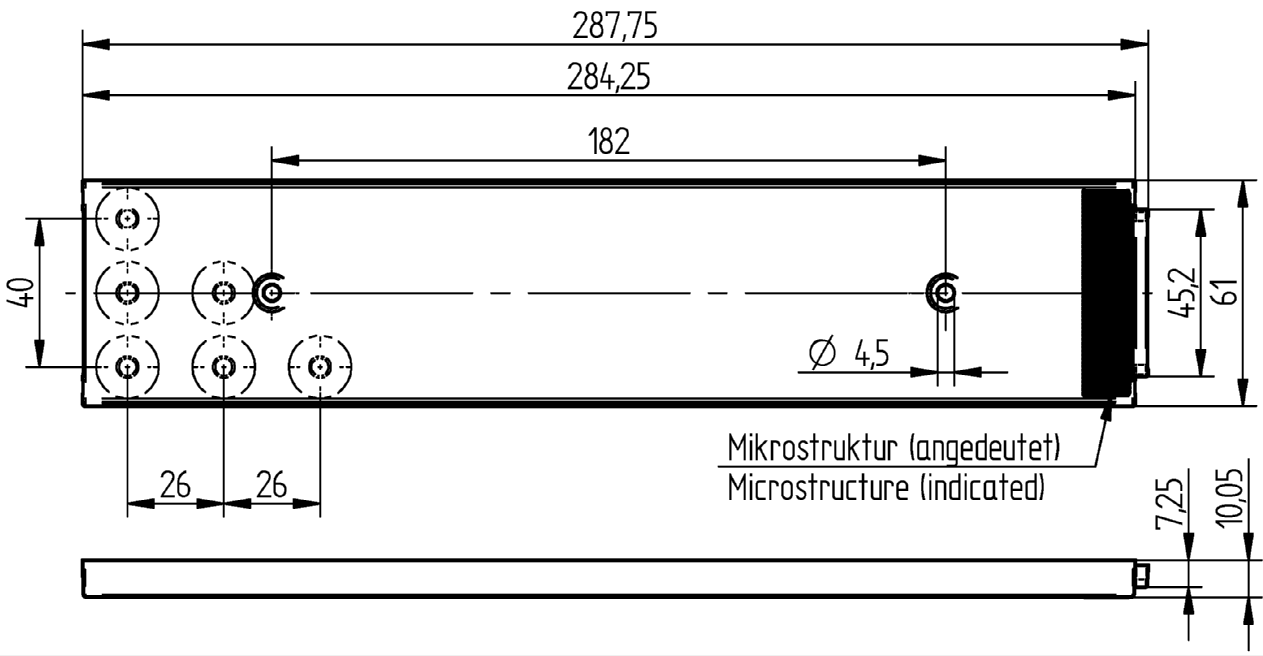

| Color: | clear |
|---|---|
| Height: | 10,05 mm |
| IP-Protection type: | 40 |
| Length: | 284,25 mm |

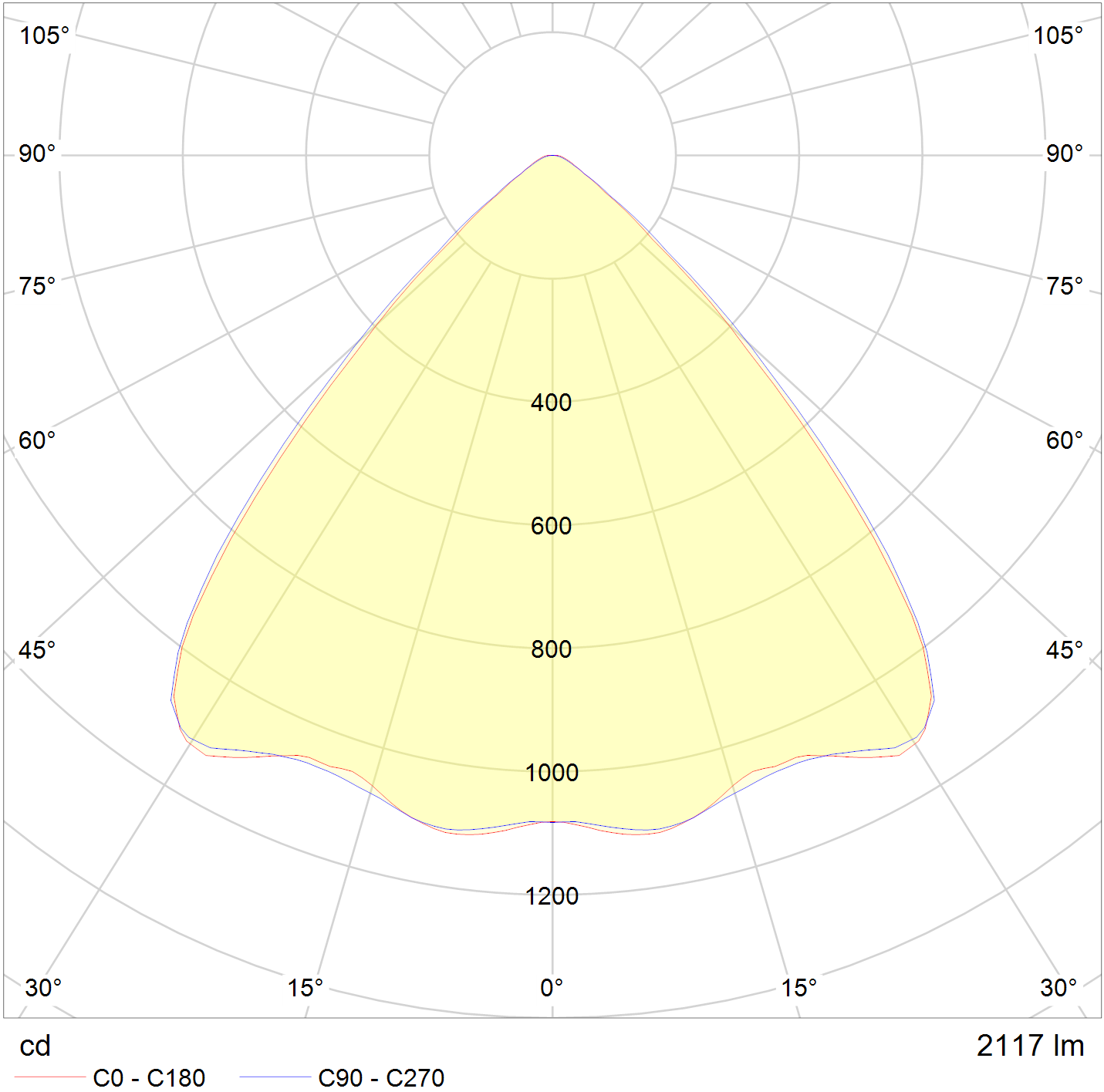

| Light Distribution: | Wide |
| Material: | PC |
| Operating temperature: | max. 110°C |
| Other: | for 3x11 LED modules according to Zhaga Book 7 |
| Packaging quantity: | 138 |
| Producttype: | 3x11 Gen. 3 |
| Series: | 3x11 Gen. 3 |
| Surface outside: | Frosted |
| Weight: | 80,7 g |
| Width: | 61 mm |
| mounting method: | Screw fixing M4 with 1,2 Nm |
| mounting method 1: | P2F (28.905) 10 N |
| old article number: | 35.333.1013.85 |
