OptiLine 3x11 Low Glare - DA
货号:
35.333.1014-0
EAN:
-
-
-
according to Zhaga Book 7
-
-
0,5 - 1,0 mm
产品信息 "OptiLine 3x11 Low Glare - DA"
- Uniform light distribution thanks to an optimized surface microstructure for reduced glare
- Optics designed for 3x11 LED modules based on Zhaga Book 7
- Compatible with 280 mm (1 ft) and 560 mm (2 ft) LED modules
- Groove-and-spring system enables seamless alignment and assembly
- Mounting options:
– Using BJB P2F for optics (Art. No. 28.905)
– Or with M4 screws (1.2 Nm torque) - Single end cap fits both sides

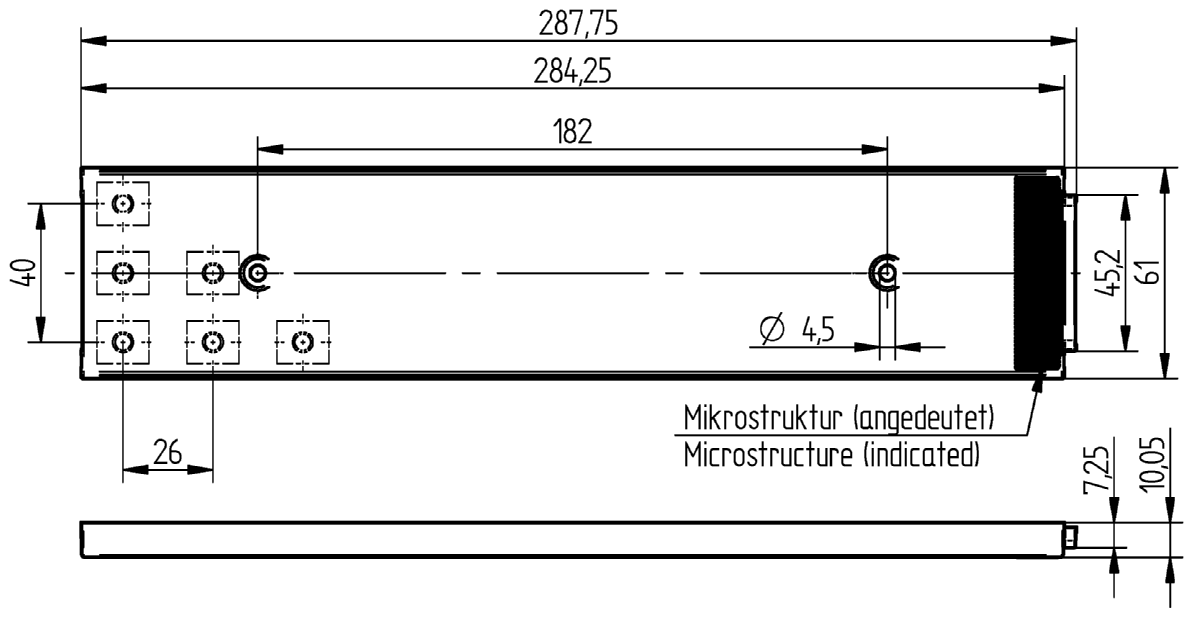

| Color: | clear |
|---|---|
| Height: | 10,05 mm |
| IP-Protection type: | 40 |
| Length: | 284,25 mm |

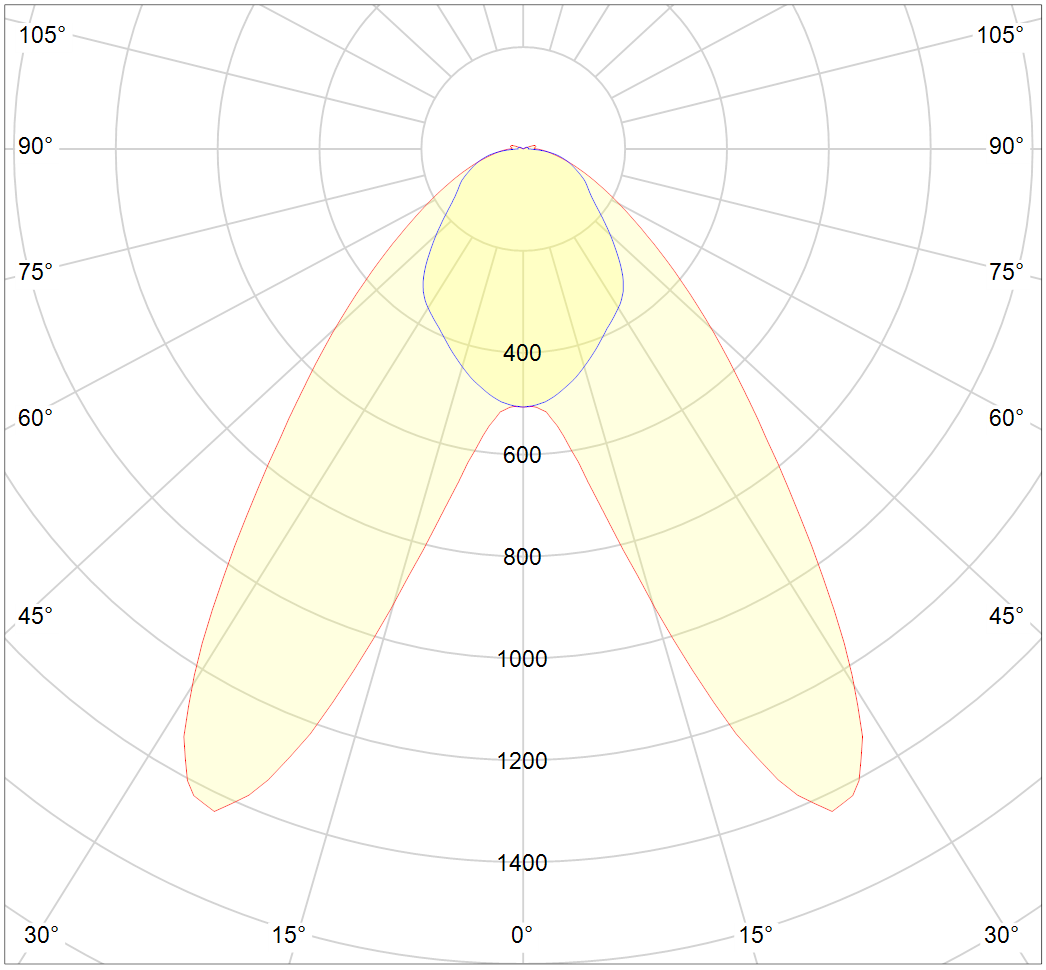

| Light Distribution: | DA |
| Material: | PC |
| Operating temperature: | max. 110°C |
| Other: | for 3x11 LED modules according to Zhaga Book 7 |
| Packaging quantity: | 138 |
| Producttype: | 3x11 Gen. 3 |
| Series: | 3x11 Gen. 3 |
| Surface outside: | Micostructure |
| Weight: | 84,1 g |
| Width: | 61 mm |
| mounting method: | Screw fixing M4 with 1,2 Nm torque |
| mounting method 1: | P2F (28.905) |
