OptiLine 3x11 Gen. 2 - Wide
货号:
35.333.1003-0
EAN:
-
-
-
according to Zhaga Book 7
-
Flood
-
0,5 - 1,0 mm
产品信息 "OptiLine 3x11 Gen. 2 - Wide"
Key and slot system for a complete assembly of the optics
Optimised for LED type 2835, 3030 and 5630
Compatible with freely available 280 mm (1 ft) and 560 mm (2 ft) 3x11 LED modules
Improved visibility and contrast of the illuminated areas
Good and uniform light distribution
Reduced glare

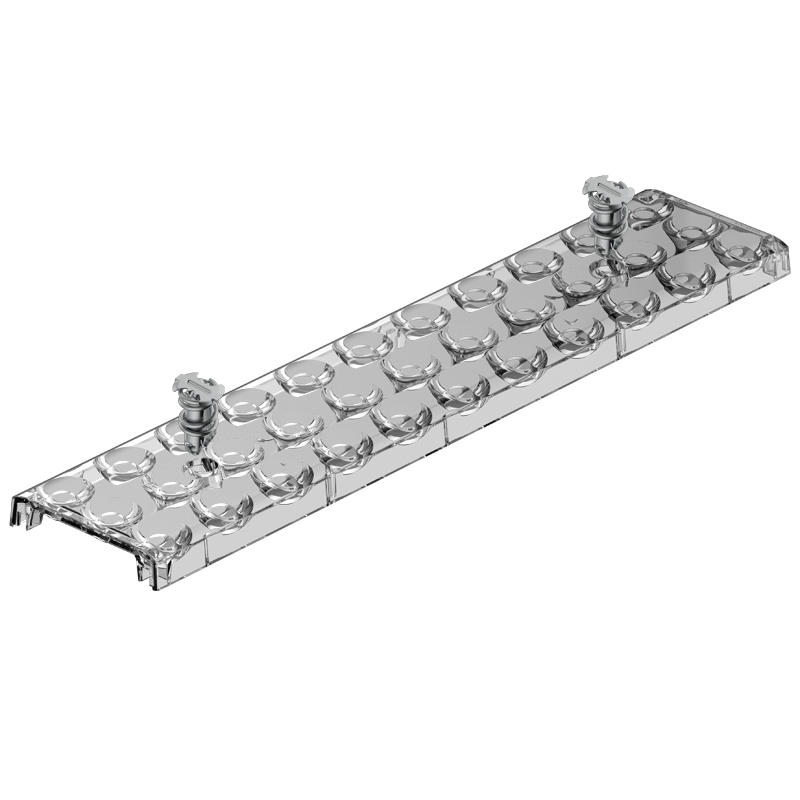

With the Optic P2F, which is available as an accessory, both the board and the optic are attached simply, quickly and securely with a click.
| Application areas: | Linear- and panel lightsOffice: Work place lighting and corridor lightingShop: General lighting and corridor lightingIndustry: Park stores, department stores and warehousesPublic applications: Corridors and stairways |
|---|---|
| Color: | clear |

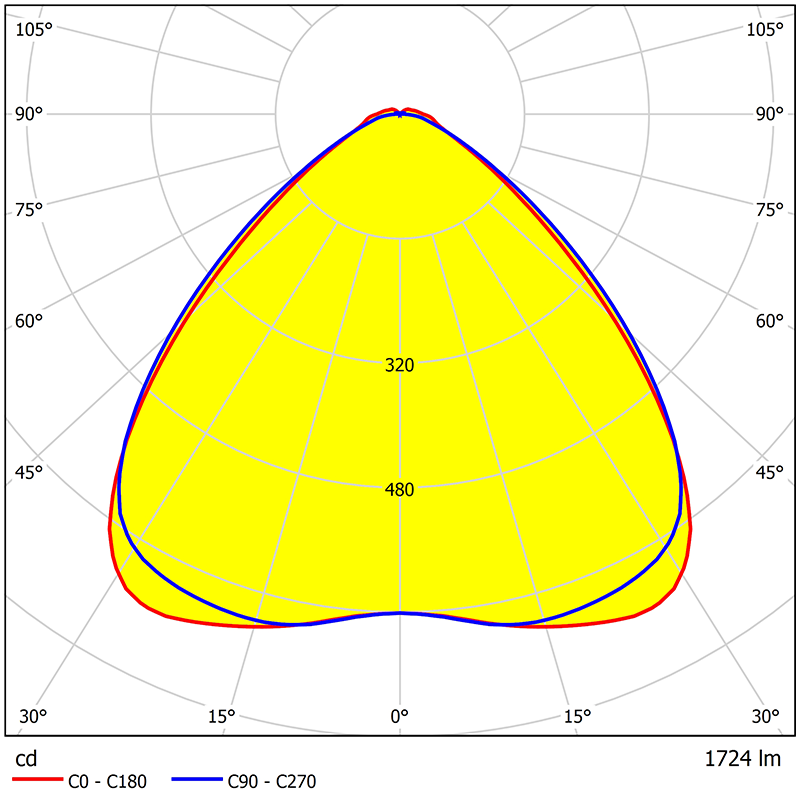

| Half-width (FWHM): | 90° |

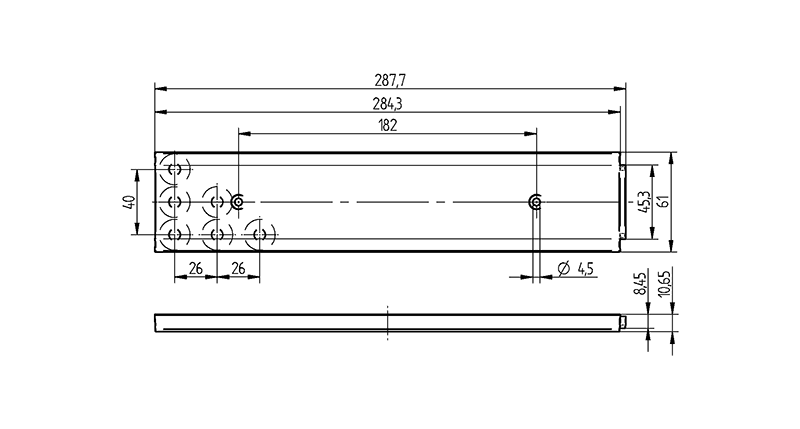

| Height: | 8.5 mm |
| Length: | 286 mm |
| Light Distribution: | wide |
| Material: | PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | for 3x11 LED modules according to Zhaga Book 7 |
| Packaging quantity: | 138 |
| Producttype: | 3x11 Gen. 2 |
| Protection type: | IP40 |
| Series: | 3x11 Gen. 2 |
| Storage temperature: | tbc |
| Surface outside: | Frosted |
| Weight: | 86 g |
| Width: | 61 mm |
| mounting method 1: | Screw fixing for screws with ø 4.0 mm |
| mounting method 2: | Snap in fixing via Optic P2F 28.905.U101 |
| old article number: | 35.333.1003.85 |
