OptiLine 3x11 - Extra wide
货号:
31.930.E488-0
EAN:
-
-
-
Wide Flood
-
according to Zhaga Book 7
产品信息 "OptiLine 3x11 - Extra wide"
3D injection optics of PMMA
Beam angle: Extra wide
Optimised for 5630 LED
• Improved visibility and contrast of the illuminated areas
• Good and uniform light distribution
| Application areas: | For use in continuous linear applications |
|---|---|
| Half-width (FWHM): | 99.2° (Lextar PC56H19) |

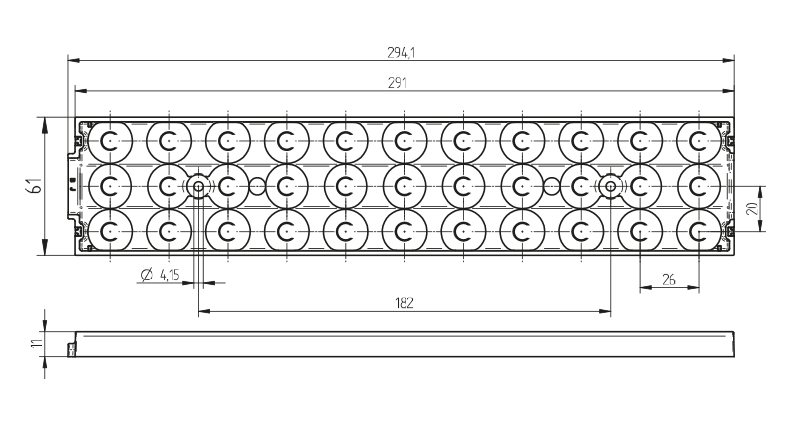

| Height: | 11 mm |
| Length: | 291 mm |

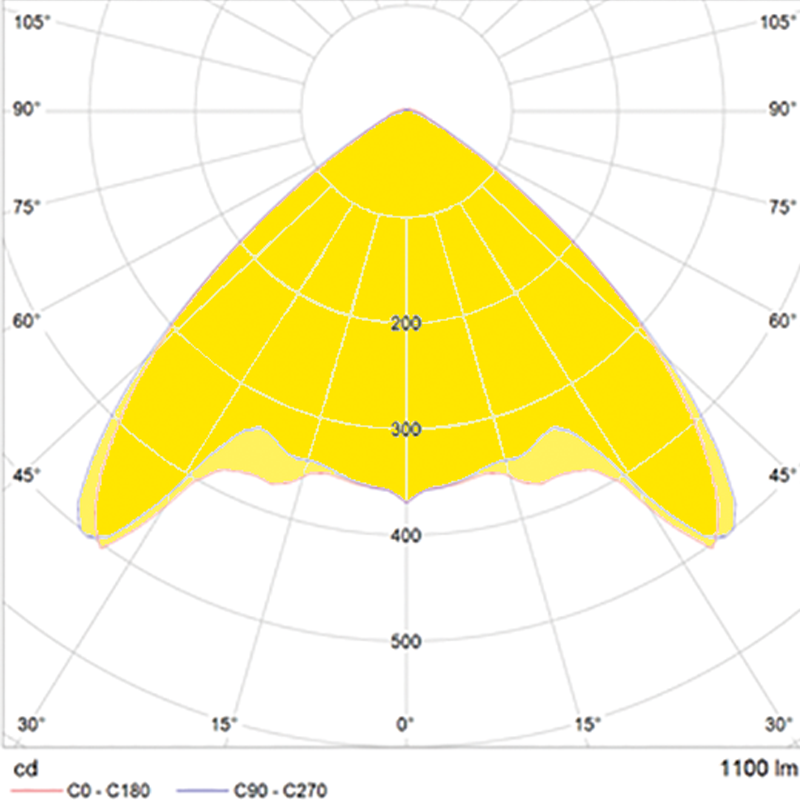

| Light Distribution: | extra wide |
| Material: | PMMA (clear) |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 80 °C |
| Optical efficiency: | 97.5% (Lextar PC56H19) |
| Other: | for 3x11 LED modules according to Zhaga Book 7 |
| Packaging quantity: | 100 |
| Producttype: | 3x11 Gen. 1 |
| Series: | 3x11 Gen. 1 |
| Suitable for: | LED Type 2835, 3030, 5630 |
| Surface outside: | high glossy |
| Width: | 61 mm |
| mounting method: | Screw fixing (1.2 Nm): for screws M4 |
| old article number: | 31.930.-488.85 |
