LED Light Bar 1170 mm 新建
货号:
77.128.2003-0
EAN:
-
产品信息 "LED Light Bar 1170 mm"
Product Information LED Light Bar for Various Applications
The compact LED Light Bar is a versatile lighting solution for a wide range of applications. Its slim design allows for easy and space-saving integration into various luminaire and housing concepts. The robust aluminum housing and diffuse cover support uniform light distribution. For easy positioning and fixation, the LED Light Bar is equipped with double-sided adhesive tape. The pre-assembled connector allows for easy integration into existing applications.
| Conductor cross-section: | AWG 24 |
|---|---|
| Height: | 23,8 mm |
| Insulation: | XLPE |
| LED?: | yes |
| Lamp: | LED |
| Length: | 1170 mm |
| Material: | Housing:Aluminium; Cover: PC |
| Max. Temperature at Tc point: | 85 °C |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating mode: | Constant voltage |
| Operating temperature: | max 85 °C |
| Operating voltage: | 12V |
| Output: | 6.0 W |
| Packaging quantity: | 30 |
| Producttype: | LED Light Bar Various Applications |
| Series: | PROFESSIONAL |
| Suitable for: | A wide variety of applications, e.g., furniture, refrigerators, ... |
| Weight: | 368 g |
| Width: | 21,9 mm |
| Wire length: | length 332 mm incl. Connector |
| Wiring: | Connector TE 350778-1 |
| directional characteristic: | diffuse |

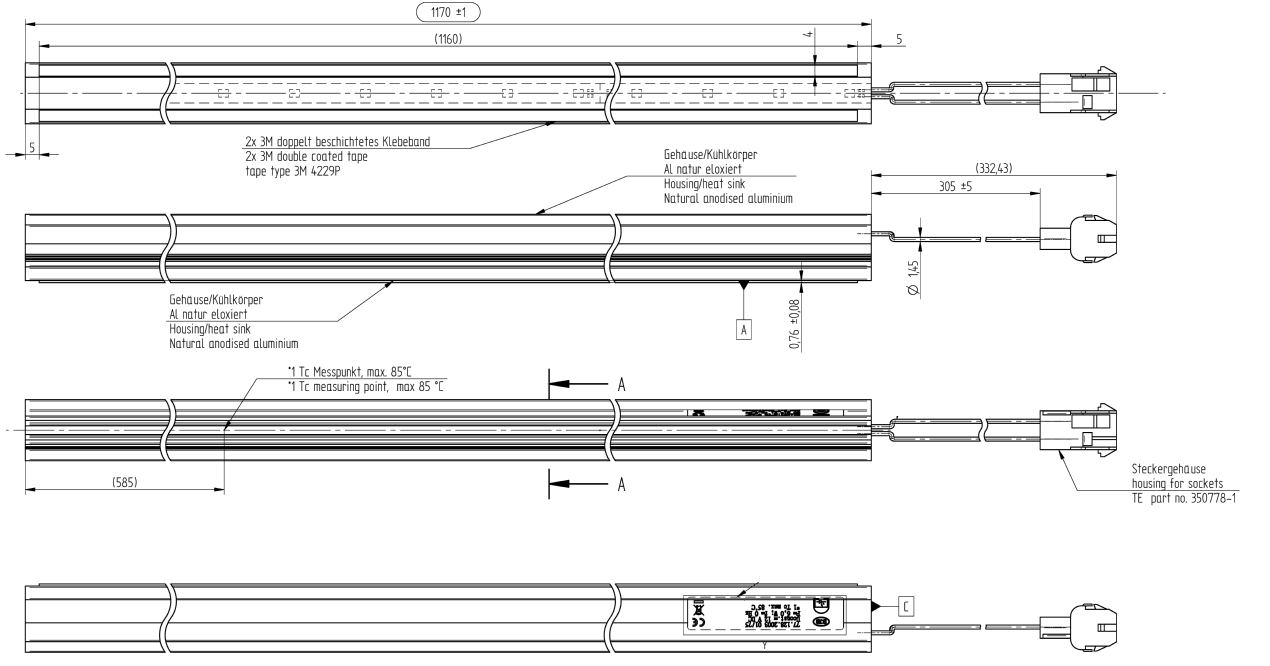

Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 77.128.2003-0 | VDE_Zeichengenehmigung_--VDE_Marks_Approval_-5772810 |
