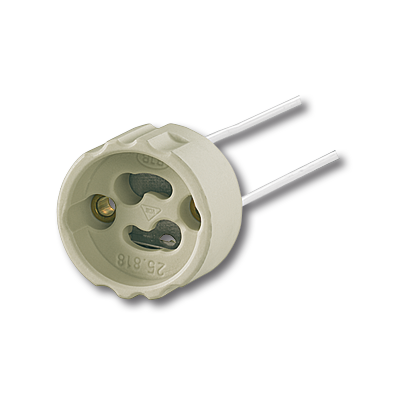

Lampholder GZ10
货号:
25.818.2901-0
EAN:
-
-
-
-
GU10
产品信息 "Lampholder GZ10"
- cULus: File E-93328
| Ausführung: | Line Voltage Halogen Lampholder GZ10 |
|---|---|
| Connector: | Rear leads |
| Halogen lamp high-voltage: | GZ10 |
| Lamp: | for GZ10 |
| Material: | Housing: Ceramic / Mica plateContacts: Ni |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | Line Voltage Halogen Lampholder GZ10 |
| Series: | Line Voltage Halogen Lampholders |
| Weight: | 16 g |
| Wires: | Cu. nickel, 0.75 mm², Insulation: PTFE (max. 250° C), with ferrule, Free cable length: 150 mm |
| mounting method 1: | Screw mount |
| old article number: | 25.818.2901.00 |

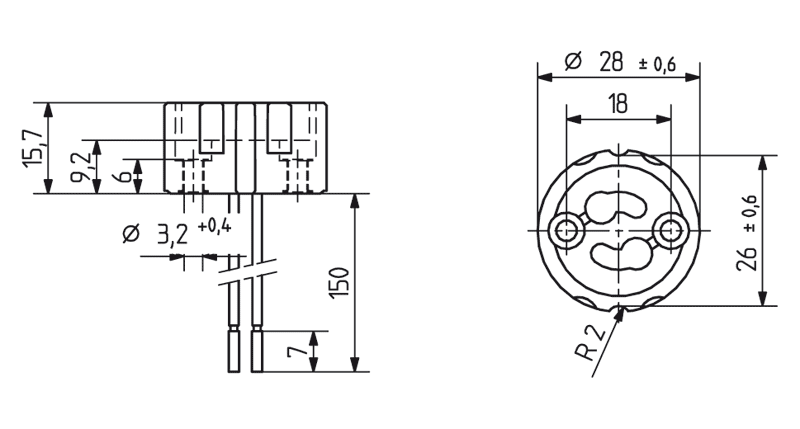

Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 25.818.2901-0 | ENEC_Zeichen_--ENEC_Approval_-690285 | ||
| 25.818.2901-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-4805042 | ||
| 25.818.2901-0 | IRAM_Genehmigung_liegt_vor_--IRAM_approval_at_hand_-750508 | ||
| 25.818.2901-0 | CQC_Genehmigung_liegt_vor_--CQC_approval_at_hand_-3500051 |
-
-
-
