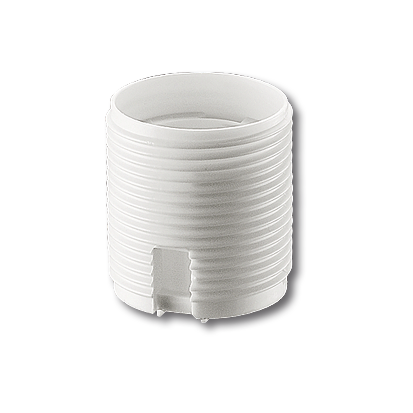

Lampholder E27
货号:
22.317.3906-0
EAN:
-
-
0,5 - 1,5 mm²
-
0,5 - 1,5 mm²
-
max. ø 1,8 mm
-
-
-
产品信息 "Lampholder E27"
- Threaded barrel
- Screw mounting: for cheese head screws
- T180 lampholders on request
- M3 screw size recommended
- Screw mounting: for cheese head screws
- T180 lampholders on request
- M3 screw size recommended
| Ausführung: | E27 Molded Lampholders |
|---|---|
| Color: | white |
| Edison lamps: | E27 |
| Form: | Standard Form |
| Material: | Housing: PET |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 250 |
| Producttype: | E27 Molded Lampholders |
| Screws: | M3 screw size recommended |
| Series: | Incandescent Lampholders |
| Weight: | 26 g |
| mounting method 1: | Snap-in mounting |
| mounting method 2: | Screw mount |
| old article number: | 22.317.3906.50 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 22.317.3906-0 | Genehmigung_liegt_vor-Approval_at_hand4070785 | ||
| 22.317.3906-0 | Genehmigung_liegt_vor-Approval_at_hand3471486 | ||
| 22.317.3906-0 | Genehmigung_liegt_vor-Approval_at_hand750695 | ||
| 22.317.3906-0 | ENEC_Zeichen-ENEC_Approval686003 |
-
0,5 - 1,5 mm²
-
0,5 - 1,5 mm²
-
max. ø 1,8 mm
-
-
-
