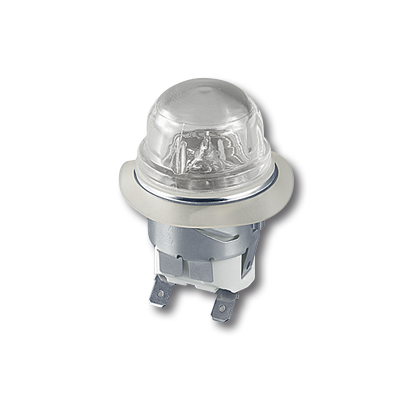

G9 Oven lamp Steam Round ø 35,5
货号:
77.208.5171-0
EAN:
-
-
6,3 x 0,8
-
0,6 - 2,5 mm
-
-
G9, 25W, 230V
-
产品信息 "G9 Oven lamp Steam Round ø 35,5"
Versions with G4 or E14 lamps and cURus on request
Lamps for other voltages on request
Gasket: silicone 300° C, 100% dampness/ foodsafe
Also available with welded cables
Lamps for other voltages on request
Gasket: silicone 300° C, 100% dampness/ foodsafe
Also available with welded cables
| Application areas: | Home |
|---|---|
| Connector: | Tab Terminals 45° angle |
| Lamp: | G9, 25W |

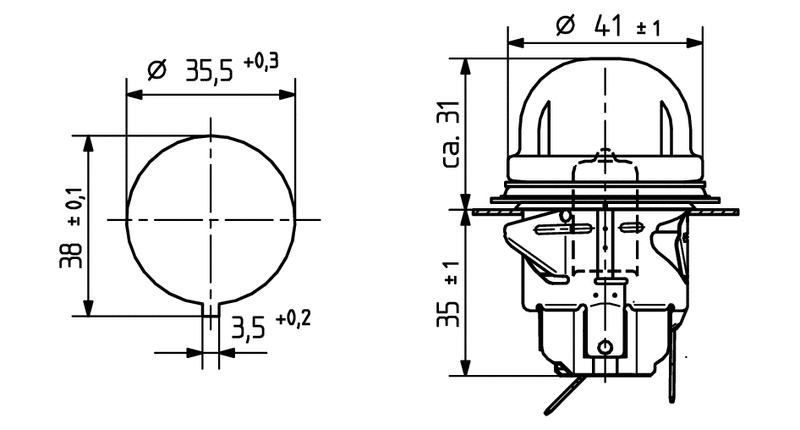

| Lens diameter: | 41 mm |
| Material: | Lens: soda-lime glass 350° CSleeve: CrNiLampholder: Steatite |
| Mounting cutout: | 35.5 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 1600 |
| Producttype: | G9 Steam Oven Luminaire |
| Series: | Steam |
| Suitable for: | Steam oven |
| Weight: | 83 g |
| old article number: | 77.208.5171.10 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 77.208.5171-0 | CQC_Genehmigung_liegt_vor_--CQC_approval_at_hand_-3315013 | ||
| 77.208.5171-0 | ENEC_Zeichen_--ENEC_Approval_-741008 | ||
| 77.208.5171-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-4805180 |
-
6,3 x 0,8
-
0,6 - 2,5 mm
-
-
G9, 25W, 230V
-
