G9 Oven lamp Square 30x70
货号:
77.945.0101-0
EAN:
-
-
G9, 25W, 230V
-
-
-
-
1,0 - 1,6 mm
产品信息 "G9 Oven lamp Square 30x70"
Other cable versions on request.
Lamps for other voltages on request
Lamps for other voltages on request
| Application areas: | Home |
|---|---|
| Color: | nickel plated |
| Lamp: | G9, 25W |
| Material: | Lens: borosilicate glass 550° CReflector: Steel aluminisedLampholder: Steatite |

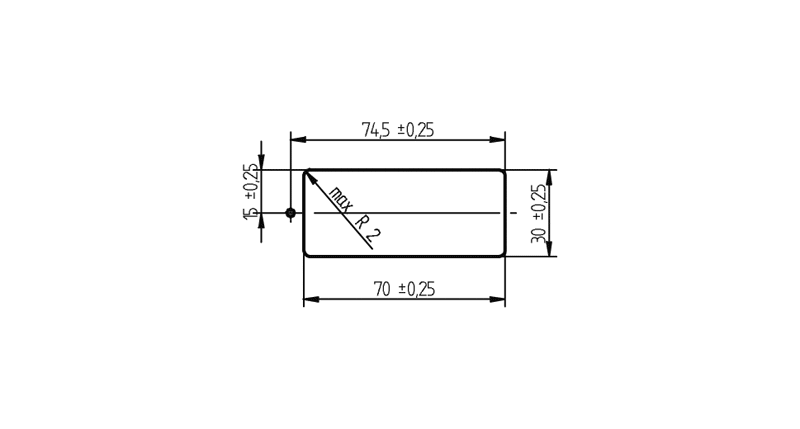

| Mounting cutout: | 30 x 70 |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 144 |
| Producttype: | G9 Standard Oven Luminaire |
| Series: | Standard |
| Suitable for: | Standard oven |
| Weight: | 87 g |
| Wires: | PTFE (max. 250° C), Free cable length: 650 mm |
| mounting method 1: | Screw mount |
| old article number: | 77.945.0101.23 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 77.945.0101-0 | CQC_Genehmigung_liegt_vor_--CQC_approval_at_hand_-5685045 | ||
| 77.945.0101-0 | ENEC_Zeichen_--ENEC_Approval_-741008 |
-
G9, 25W, 230V
-
-
-
-
1,0 - 1,6 mm
