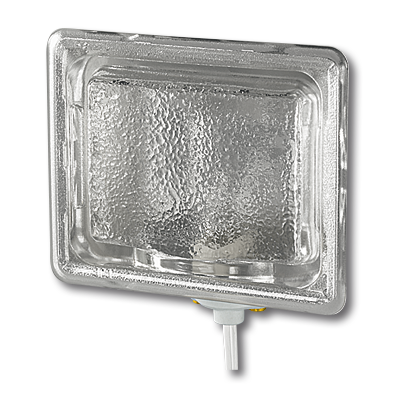

G4 Oven lamp Square 55x70
货号:
77.707.1102-0
EAN:
-
-
-
-
-
1,0 - 2,0 mm
-
G4, 20W, 12V
-
产品信息 "G4 Oven lamp Square 55x70"
Other cable versions on request
| Application areas: | Home |
|---|---|
| Color: | aluminium plated |
| Lamp: | G4, 20W |
| Material: | Lens: borosilicate glass 550° CReflector: Steel aluminisedLampholder: Steatite |

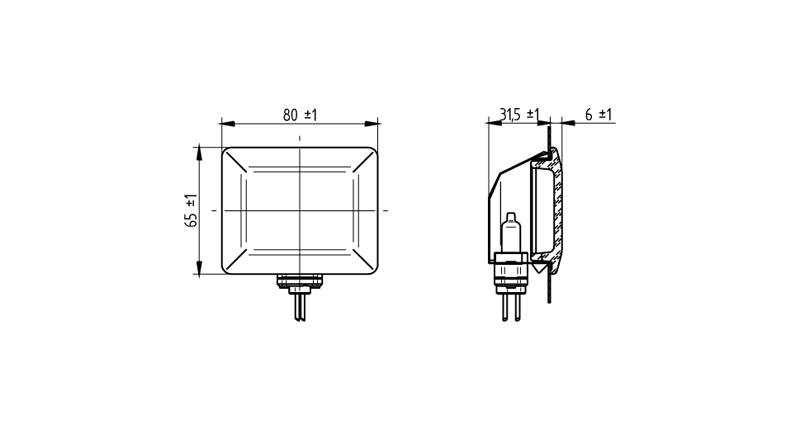

| Mounting cutout: | 55 x 75 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 48 |
| Producttype: | G4 Standard Oven Luminaire |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Series: | Standard |
| Suitable for: | Standard oven |
| Weight: | 110 g |
| Wires: | PTFE (max. 250° C), Lead length: 147 mm |
| mounting method 1: | Snap-in mounting |
| old article number: | 77.707.1102.23 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 77.707.1102-0 | Genehmigung_liegt_vor-Approval_at_hand4805180 | ||
| 77.707.1102-0 | ENEC_Zeichen-ENEC_Approval713392 |
-
-
-
-
1,0 - 2,0 mm
-
G4, 20W, 12V
-
