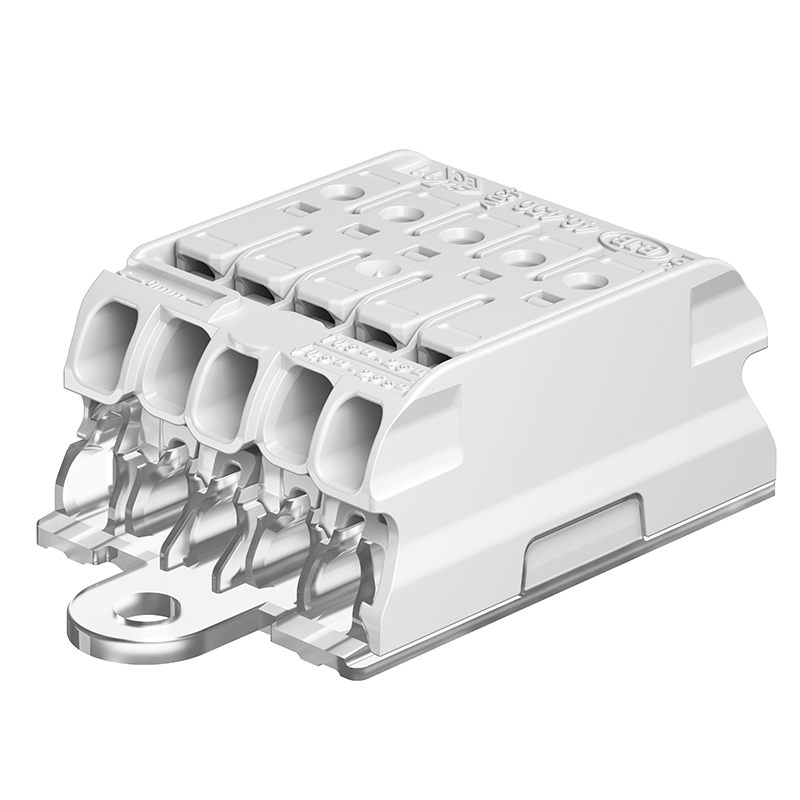

Compact Rast 5 Screw Fix terminal block
-
-
-
9 - 10 mm
-
ø 0.5 - 2.5 mm²
-
ø 0.5 - 2.5 mm²
-
ø 1.5 - 2.5 mm²
-
-
-
Ausführung: | without marking and without PE contact |
---|---|
Conductor cross-section: | 0.5 - 2.5 mm² |
Connector: | push wire contact |
Contact opening: | Upper connection: Conductor can be detached using a screwdriver, push and detachable Lower connection: conductor can be released using a release pin, turning and pulling |
Earth contact : | without |

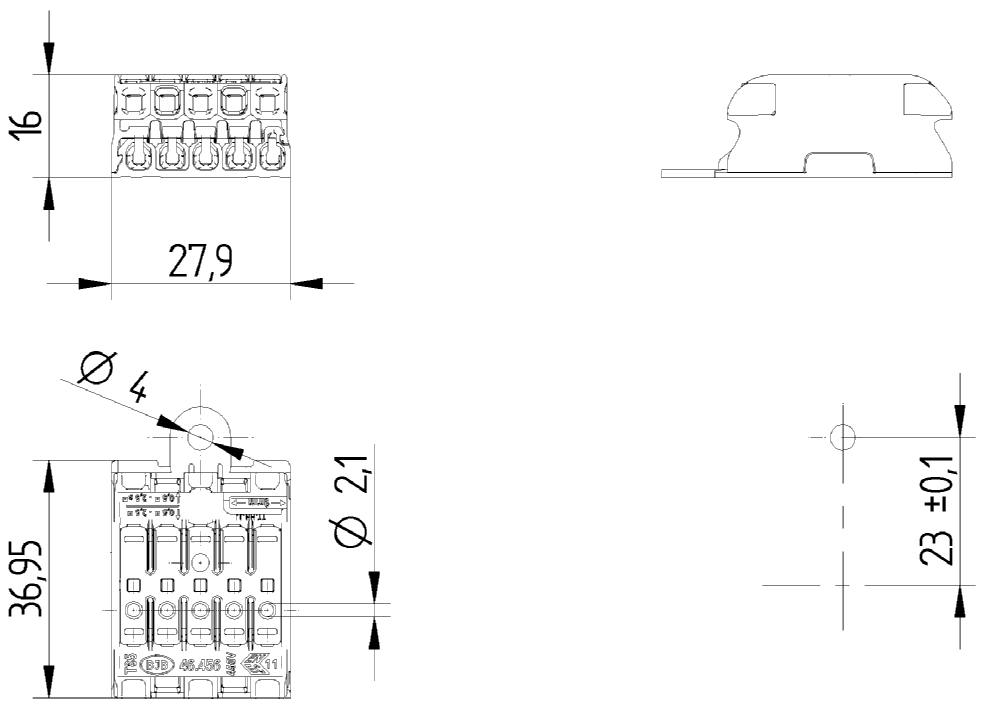

Height: | 16 mm |
Length: | 27,9 mm |
Lettering: | ohne / without |
Material: | Housing: PC white and clearContacts: Cu |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Number of poles: | 5 |
Operating current: | 24A |
Operating temperature: | -40 °C to 85 °C (at maximum testcurrent of 24 A) |
Operating voltage: | 450V |
Other: | Test opening Ø 2.1 ± 0.1 - Contact depth 4.2 mm |
PRFZ_BEZ: | ENEC11 Certificate License No. 19415-003 |
PRFZ_STATUS: | active |
Packaging quantity: | 400 |
Producttype: | Compact Rast 5 terminal block |
Series: | Compact Rast 5 terminal blocks |
T-marking: | T85 (IEC) / T105 (UL) |
Width: | 37 mm |
Wire length: | Stripping length 9 - 10 mm |
Wiring: | Push wire contact |
mounting method 1: | Screw mount |
Available CAD Downloads
证书
货物编号 | 状态: | 描述: | 文档 |
---|---|---|---|
46.456.1013-0 | ENEC_Zeichen-ENEC_Approval7066641 |
-
-
-
