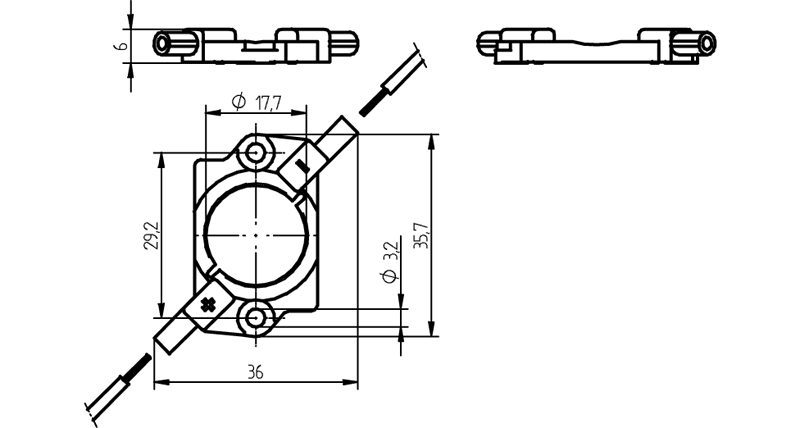

COB Connector Spec J360 COB
货号:
47.316.3002-0
EAN:
-
-
-
20 AWG
-
20 AWG
-
产品信息 "COB Connector Spec J360 COB"
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg. No. D971
*Please note the max torque of the COB manufacturer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg. No. D971
*Please note the max torque of the COB manufacturer
| Conductor cross-section: | 0.75 mm² |
|---|---|
| LED?: | intended for the use of COBs |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110°C |
| Packaging quantity: | 280 |
| Pre-centering for COB: | No |
| Producttype: | Connectors für special COB's |
| Rating: | 3A / 300 VDC |
| Series: | Connectors für Special COB's - 47.315-318 |
| Suitable for: | J360 from Nichia |
| UL: | yes |
| Weight: | 2 g |
| cURus file no.: | E-345385 |
| mounting method 1: | Screw mount |
| old article number: | 47.316.3002.50 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 47.316.3002-0 | cURus_(USA_and_Canada)--3437952 |
适配以下LED类型
| LED厂商 | LED名称 | 更多信息 |
|---|---|---|
| Nichia | J360 | www.nichia.co.jp |
-
-
