COB Connector Spec for diverse COBs
货号:
47.315.4009-0
EAN:
-
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-

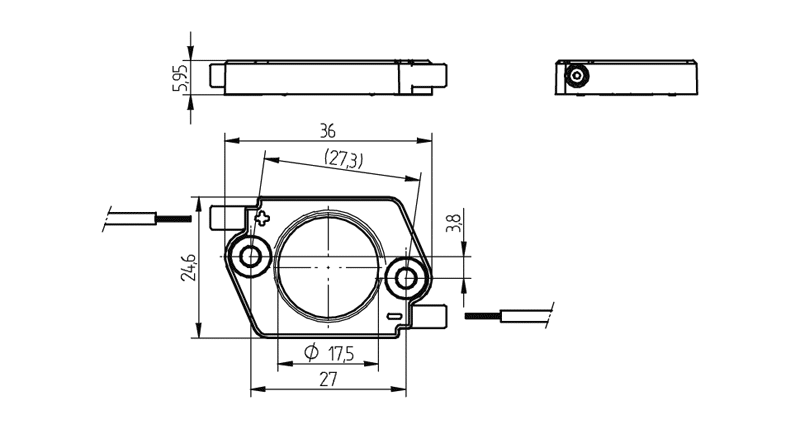

产品信息 "COB Connector Spec for diverse COBs"
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg. No. D971
*Please note the max torque of the COB manufacturer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg. No. D971
*Please note the max torque of the COB manufacturer
| Certification Mark: | VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1 |
|---|---|
| Conductor cross-section: | 0.5 mm² |
| Country of origin: | DE |
| LED?: | intended for the use of COBs |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110°C |
| Packaging quantity: | 280 |
| Pre-centering for COB: | No |
| Producttype: | Connectors für special COB's |
| Rating: | 3A / 150 VDC |
| Series: | Connectors für Special COB's - 47.315-318 |
| Suitable for: | CL-L030, L032, 091 and CL-U034 from Citizen, HM16/HM30 from Edison Opto, PACB 032 from Prolight Opto, ZC12 / ZC18 from Seoul Semiconductors, G17 from Sunpu, LES17 from Tridonic and DMC 114/125/128 from Vossloh-Schwabe |
| Type of packaging: | Tray |
| UL: | yes |
| Weight: | 3 g |
| cURus file no.: | E-345385 |
| mounting method 1: | Screw mount |
| old article number: | 47.315.4009.50 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 47.315.4009-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-3848859 | ||
| 47.315.4009-0 | cURus_(USA_and_Canada)--3437952 | ||
| 47.315.4009-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-5665445 |
适配以下LED类型
| LED厂商 | LED名称 | 更多信息 |
|---|---|---|
| Citizen | CL-L030 | ce.citizen.co.jp |
| Citizen | CL-L032 | ce.citizen.co.jp |
| Citizen | CL-L091 | ce.citizen.co.jp |
| Citizen | CL-U034 | ce.citizen.co.jp |
| Edison | HM16 | www.edison-opto.com |
| Edison | HM30 | www.edison-opto.com |
| Prolight Opto | PACB 032 | www.prolightopto.com |
| Samsung | LES17 | www.samsung.com/led |
| Seoul Semiconductor | ZC12 | www.seoulsemicon.com |
| Seoul Semiconductor | ZC18 / SDWx3F1C | www.seoulsemicon.com |
| Sunpu | G17 | www.sunpu-opto.com |
| Vossloh-Schwabe | DMC114 | www.vossloh-schwabe.com |
| Vossloh-Schwabe | DMC125 | www.vossloh-schwabe.com |
| Vossloh-Schwabe | DMC128 | www.vossloh-schwabe.com |
-
-
