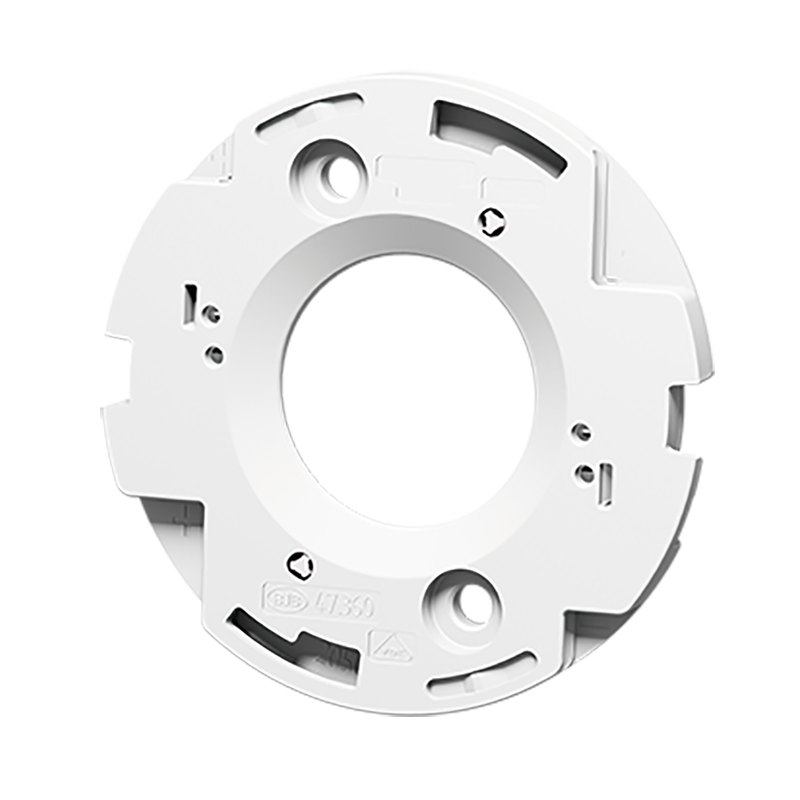

COB Connector Slim Ø50 LED array 23.85x23.85

产品信息 "COB Connector Slim Ø50 LED array 23.85x23.85"
With integrated COB holder and interface for reflectors 47.950
Easy pre-assembly of LED
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 8+1 mm

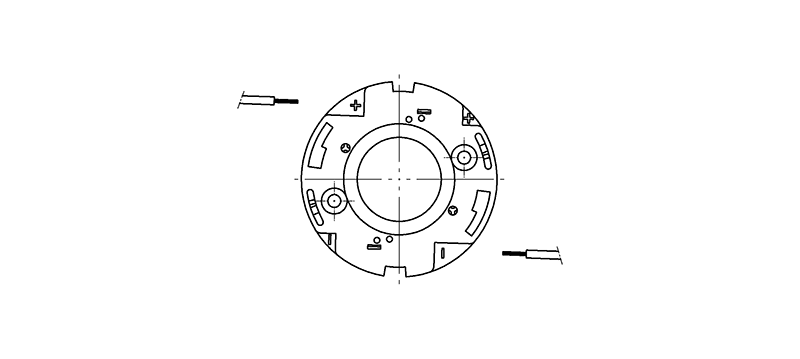

Polarity symbols of connector and LED must be observed in assembly
Specification of LED manufacturer must be observed
In a series connection of LED modules, the air gap and creepage distances has to be sized that each module covers the total voltage of the series connection
*Please note the max torque of the COB manufacturer
Certification Mark: VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1
Conductor cross-section: Solid wires: 0.35 - 0.5 mm², AWG 22 - 20 / Stranded, tinned wires: 0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
Country of origin: DE

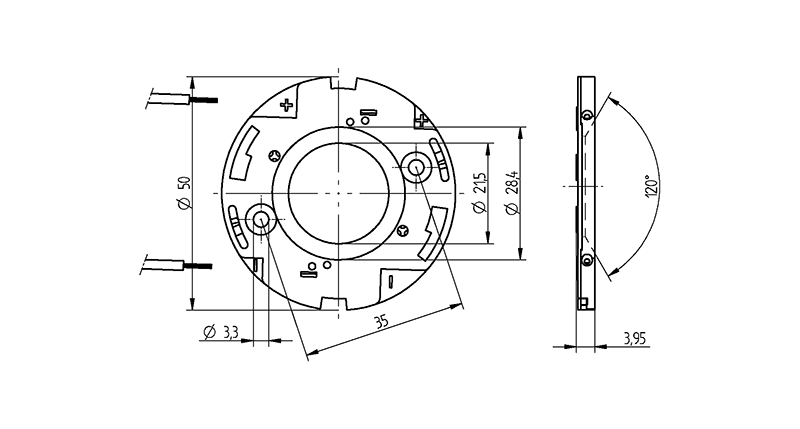

Diameter: Ø 50 mm
LED?: intended for the use of COBs
LED Array: 23.85 x 23.85 mm
Material: Housing: PBTContacts: CuSn
Note warranty conditions: *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating temperature: max. 110°C
Packaging quantity: 420
Pre-centering for COB: Yes
Prefixation: Clamping tab
Producttype: Slim Spotlight Connectors and Accessories
Rating: 3A / 150 VDC
Series: COB Slim Connectors - 47.360
Solid wires: 0.35 - 0.5 mm², AWG 22 - 20
Stranded, tinned wires: 0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
Type of packaging: Bag
UL: yes
Weight: 5,3 g
mounting method 1: Screw mount
mounting method 2: P2F fixing with 28.902.-102
mounting method 3: Tip for fastening by screws: The screw chamber of the 47.360 series has a height of 1.9 mm. The screw head must not be higher, otherwise the reflector will fit poorly or not at all.
old article number: 47.360.2050.50

适配以下LED类型

LED厂商 LED名称 更多信息
Cree CXB2540 cree-led.com
  • 0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm

  • 0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm

  • 8.0 + 1 mm
