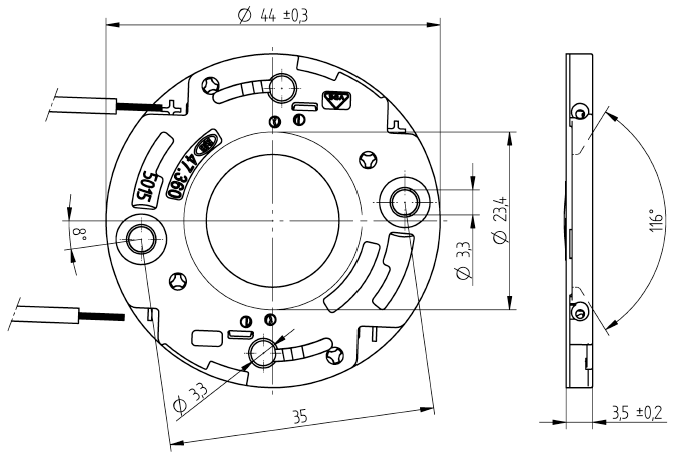

COB Connector Slim Ø44 LED array 19 x 19

货号: 47.360.5015-0

EAN: -

0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
8.0 + 1 mm

产品信息 "COB Connector Slim Ø44 LED array 19 x 19"

COB Connector 47.360
• Compact Design
• High Strength Housing
• Durable Contacts
• Flexible Connectivity
• COB Pre fixation
• Accessory Integration
• Clear Markings

Polarity of LED must be observed Specifications of LED manufacturer must be observed cURus: For limited applications

Certification Mark:	VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1
Conductor cross-section:	Solid wires: 0.35 - 0.5 mm², AWG 22 - 20 / Stranded, tinned wires: 0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
Diameter:	Ø 44 mm
LED?:	intended for the use of COBs
LED Array:	19 x 19 mm
Material:	Housing and Cover: PBTContacts: CuSn
Mounting cutout:	Integrated interface for reflectors
Operating current:	3 A
Operating temperature:	-30 to +110°C
Operating voltage:	VDE (EN60838-1) 150 VdcUL (UL 8754) 60 Vdc
Packaging quantity:	540
Prefixation:	Clamping tab
Producttype:	Slim Spotlight Connectors and Accessories
Series:	COB Slim Connectors - 47.360
Solid wires:	0.35 - 0.5 mm², AWG 22 - 20
Stranded, tinned wires:	0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
UL:	yes
Weight:	4,22 g
Wire length:	8 +1 mm
mounting method:	Srew fixing M 3Alternative with P2F for blind holes: 28.902.E102-0
old article number:	47.360.5015.50

可用下载

Datasheet_COB_connector_47.360.5015-0_Rev._1.1

Available CAD Downloads

证书

货物编号	状态：	描述：	文档
47.360.5015-0			cURus_(USA_and_Canada)--3437952
47.360.5015-0			ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-5663881

适配以下LED类型

LED厂商	LED名称	更多信息
Bridgelux	DS101 V13 Gen. 7	www.bridgelux.com
Bridgelux	DS413 V13 Gen. 8	www.bridgelux.com
Bridgelux	DS1304 V13 Gen. 9	www.bridgelux.com
Bridgelux	DS1371 Vesta® Series Dim-To-Warm Gen 3	www.bridgelux.com
