COB Connector Ø50 LED array 24x19
货号:
47.319.2394-0
EAN:
-
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-
产品信息 "COB Connector Ø50 LED array 24x19"
Spotlight connector for COB-LEDs.
Suitable for the following COB types
Manufacturer: Nichia
COB-Type: NFCLJ108B-V1M7
• With integrated reflector interface
• Easy handling due to pre-assembly of the COB by fixing arms
• Screw fixing: for screws M3 and locking washer
• Max. torque for screw fixing 0.5 Nm • Strip length: 7-1 mm
• Polarity symbols of connector and COB must be observed in assembly
• Specification of COB manufacturer must be observed
• If COBs are connected in series, the creepage distances and clearances of the individual modules must be the total voltage of the series connection.
• VDE-Reg. Nr. E289
• cURus: for limited applications
| Certification Mark: | VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1 |
|---|---|
| Conductor cross-section: | 0.5 mm² |

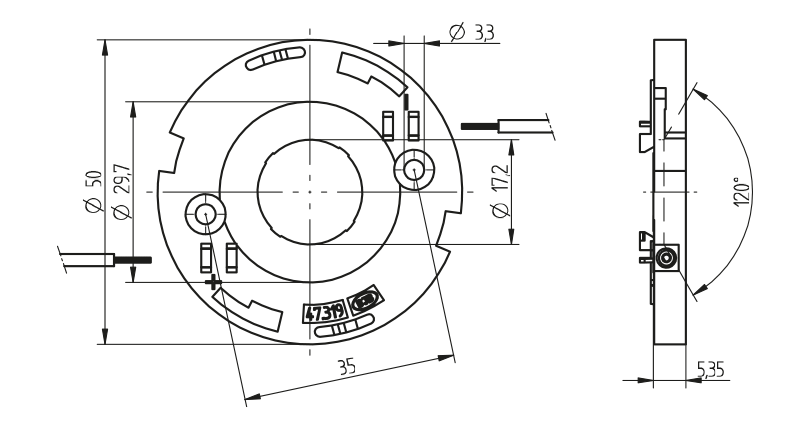

| Diameter: | Ø 50 mm |
| LED?: | intended for the use of COBs |
| LED Array: | 24 x 19 mm |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 130°C |
| Packaging quantity: | 420 |
| Producttype: | Spotlight Connectors and Accessories |
| Rating: | 3A / 60 VDC |
| Series: | COB Connectors - 47.319 |
| UL: | no |
| cURus file no.: | E-345385 |
| mounting method: | Screw fixing |
| mounting method 2: | P2F fixing with 28.902.-102 |
| old article number: | 47.319.2394.50 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 47.319.2394-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-5665445 | ||
| 47.319.2394-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-5852779 |
适配以下LED类型
| LED厂商 | LED名称 | 更多信息 |
|---|---|---|
| Nichia | NFCLJ108B-V1M7 | www.nichia.co.jp |
-
-
