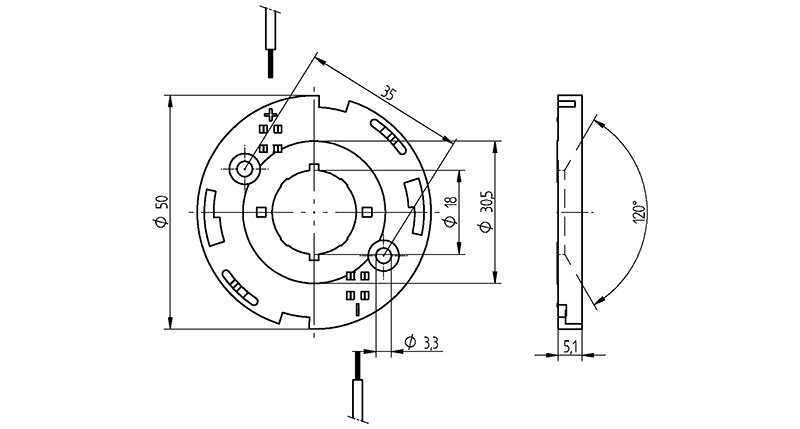

COB Connector Ø50 LED array 20x24
货号:
47.319.2011-0
EAN:
-
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-
产品信息 "COB Connector Ø50 LED array 20x24"
With integrated reflector interface
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
| BHC: | CSPM Serie 2024NW |
|---|---|
| Certification Mark: | VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1 |
| Conductor cross-section: | 0.5 mm² |
| Diameter: | Ø 50 mm |
| LED?: | intended for the use of COBs |
| LED Array: | 20 x 24 mm |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 130°C |
| Packaging quantity: | 504 |
| Pre-centering for COB: | No |
| Prefixation: | Viewing holder |
| Producttype: | Spotlight Connectors and Accessories |
| Rating: | 3A / 150 VDC |
| Series: | COB Connectors - 47.319 |
| Stranded, tinned wires: | 0.25 - 0.5 mm² |
| UL: | yes |
| Weight: | 5 g |
| cURus file no.: | E-345385 |
| mounting method 1: | Screw mount |
| mounting method 2: | P2F fixing with 28.902.-102 |
| old article number: | 47.319.2011.50 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 47.319.2011-0 | Genehmigung_liegt_vor-Approval_at_hand5665445 | ||
| 47.319.2011-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952 | ||
| 47.319.2011-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity5852779 |
适配以下LED类型
| LED厂商 | LED名称 | 更多信息 |
|---|---|---|
| Everlight | Ju2024 | www.everlight.com |
| LEDtech | LP30N3-84N-B131301 | www.ledtech.com.tw |
| LUMILEDS | Luxeon 1204 | www.lumileds.com |
| LUMILEDS | Luxeon 1205 | www.lumileds.com |
| LUMILEDS | Luxeon 1208 | www.lumileds.com |
| Philips | Fortimo LED SLM 1205 | www.lighting.philips.co.uk/oem-emea |
| Philips | Fortimo LED SLM 1208 | www.lighting.philips.co.uk/oem-emea |
| Philips | Fortimo LED SLM PW 1208 G7 | www.lighting.philips.co.uk/oem-emea |
| Philips | Fortimo SLM C930 1208 L15 G7 | www.lighting.philips.co.uk/oem-emea |
| Sharp | Mega Zenigata | www.sharpsde.com |
-
-
