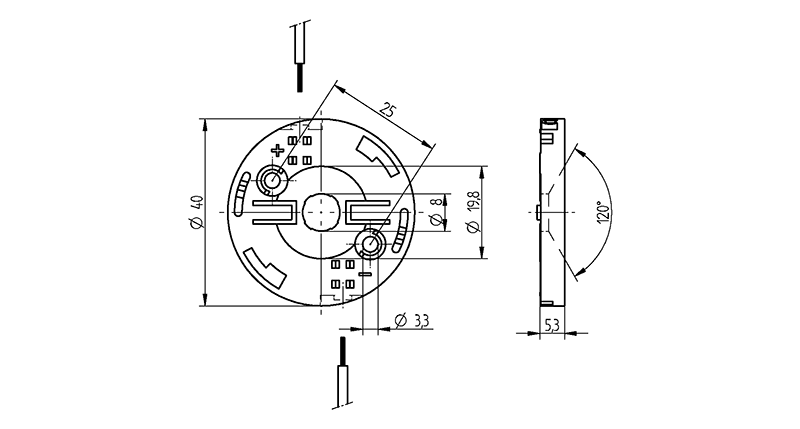

COB Connector Ø40 LED array 13.35x13.35
货号:
47.319.6120-0
EAN:
-
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-
产品信息 "COB Connector Ø40 LED array 13.35x13.35"
With integrated reflector interface
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
| Certification Mark: | VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1 |
|---|---|
| Conductor cross-section: | 0.5 mm² |
| Diameter: | Ø 40 mm |
| LED?: | intended for the use of COBs |
| LED Array: | 13.35 x 13.35 mm |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 130°C |
| Packaging quantity: | 504 |
| Pre-centering for COB: | Yes |
| Prefixation: | Locking wings |
| Producttype: | Spotlight Connectors and Accessories |
| Rating: | 3A / 150 VDC |
| Series: | COB Connectors - 47.319 |
| UL: | yes |
| Weight: | 3 g |
| cURus file no.: | E-345385 |
| mounting method 1: | Screw mount |
| mounting method 2: | P2F fixing with 28.902.-102 |
| old article number: | 47.319.6120.50 |
Available CAD Downloads
证书
| 货物编号 | 状态： | 描述： | 文档 |
|---|---|---|---|
| 47.319.6120-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952 | ||
| 47.319.6120-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity5852779 | ||
| 47.319.6120-0 | Genehmigung_liegt_vor-Approval_at_hand5665445 |
适配以下LED类型
| LED厂商 | LED名称 | 更多信息 |
|---|---|---|
| Cree | CXA1304 (18V) | cree-led.com |
| Cree | CXA1304 (37V) | cree-led.com |
| Cree | CXB1304 (9V) | cree-led.com |
| Cree | CXB1304 (18V) | cree-led.com |
-
-
