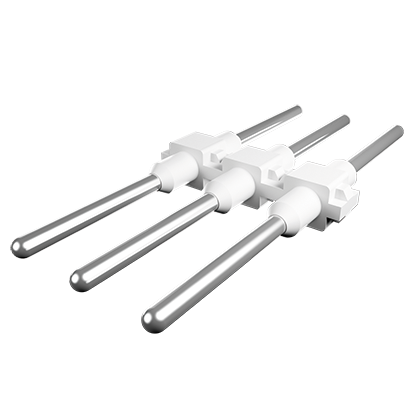

B2B Connector MiniFlex 26 - 3 pole
货号:
46.133.U701-0
EAN:
-
产品信息 "B2B Connector MiniFlex 26 - 3 pole"

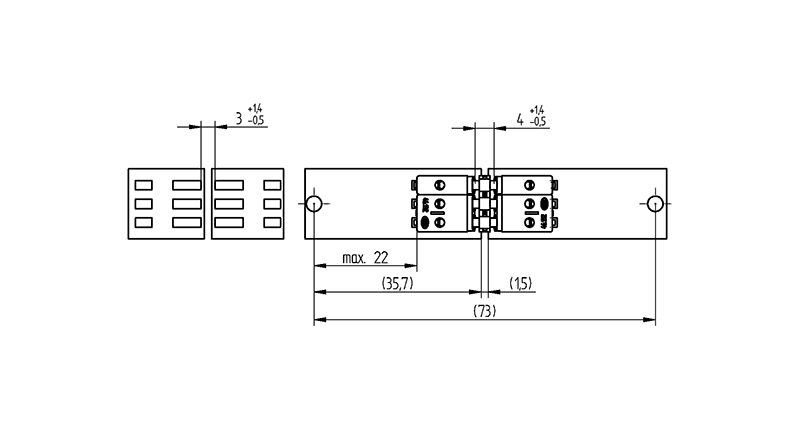

For use with SMD-Mini terminal blocks 46.131.1001 (1-pole) and 46.132.1001 (2-pole)

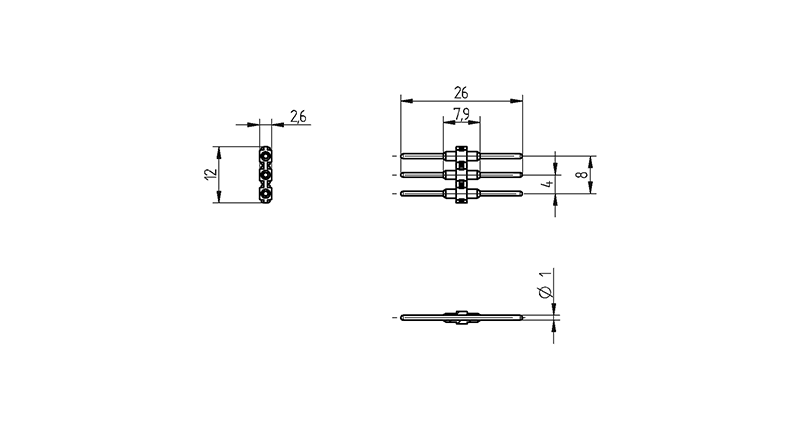

| Length: | 26 mm |
|---|---|
| Material: | Housing: PA 66 Pin: Brass, tin plated (CuZn 35) |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 3 |
| Packaging quantity: | 1000 |
| Producttype: | MiniFlex SMD Terminal Blocks |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Series: | MiniFlex SMD Terminal Blocks |
| Weight: | 0,59 g |
| mounting method 1: | Snap fixing |
| old article number: | 46.133.U701.00 |
Available CAD Downloads
