B2B Connector MiniFlex 26 - 1 pole
货号:
46.131.U701-0
EAN:
4049853
产品信息 "B2B Connector MiniFlex 26 - 1 pole"

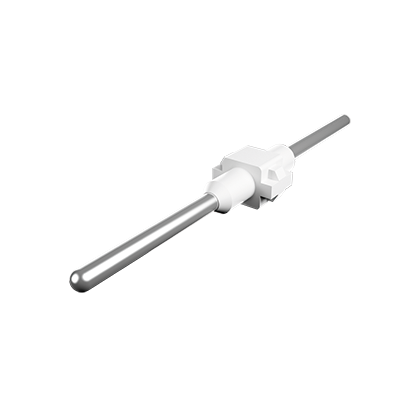

SMD Pico-B2B-Connector - 1 pole

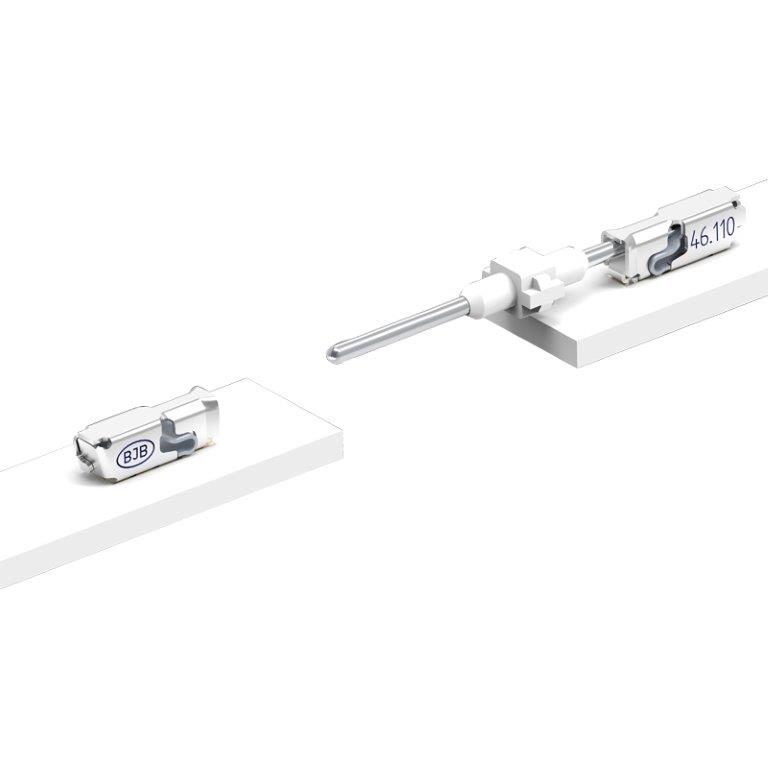

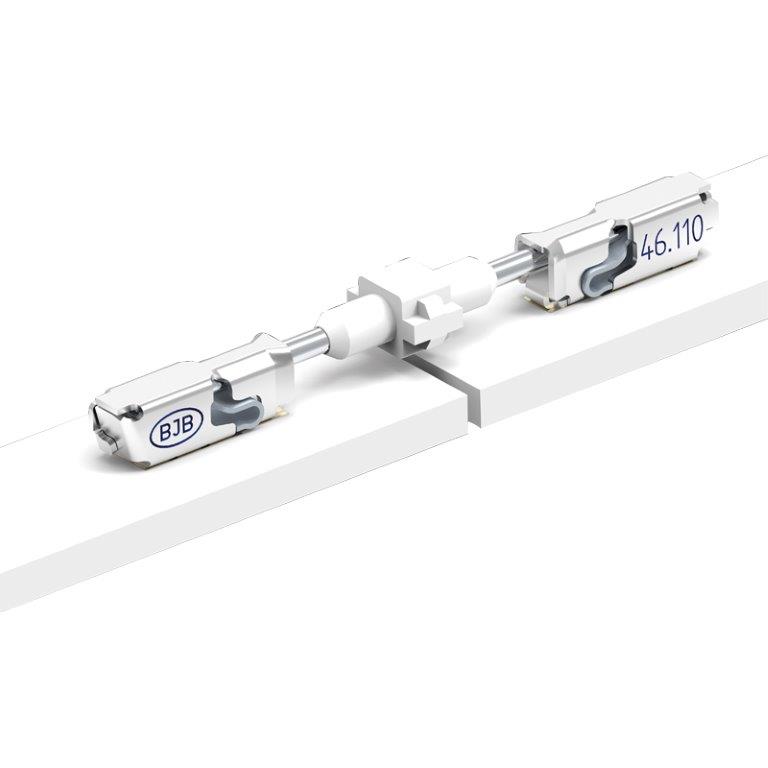

for connecting printed circuit boards

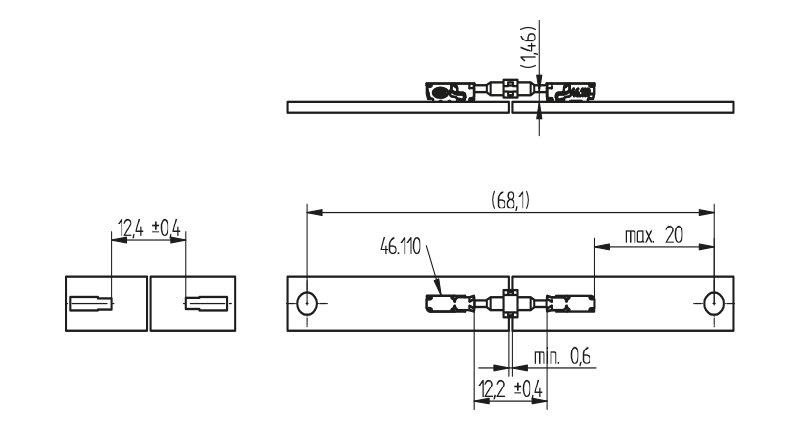

To combine with SMD terminal blocks Pico 46.110.1001
Max. temperature: -40° C up to + 105° C
Rated current: 9A
• Push in fixing: Quick, easy and tool free connection of LED modules
• Cost and times time saving connection of LED modules
• Reverse polarity protection
• No disturbing wires in the light cone

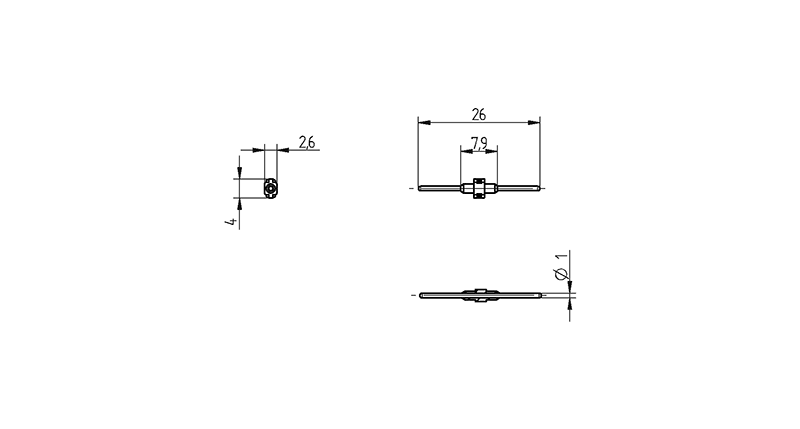

| Length: | 26 mm |
|---|---|
| Material: | Housing: PA 66 Pin: Brass, tin plated (CuZn 35) |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 1 |
| Packaging quantity: | 1 |
| Producttype: | MiniFlex SMD Terminal Blocks |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Series: | MiniFlex SMD Terminal Blocks |
| Weight: | 0,2 g |
| mounting method 1: | Snap fixing |
| old article number: | 46.131.U701.00 |
Available CAD Downloads
